application
1. Bonding of high surface energy materials such as metal, glass and most plastics.
2. Bonding panels to aluminum frames of buildings, trucks or trailers.
3. Fixing LCD panels, reinforcing and fixing metal curtain wall panels, assembling air conditioning equipment, etc.
4. Fixing window panels of electronic products, reinforcing and fixing elevator wall panels, etc.
5. Fixing of automobile trim strips, jeep bumper skirts, automobile metal trim panels, and automobile accessories.
Property
| Specification | Value/Description |

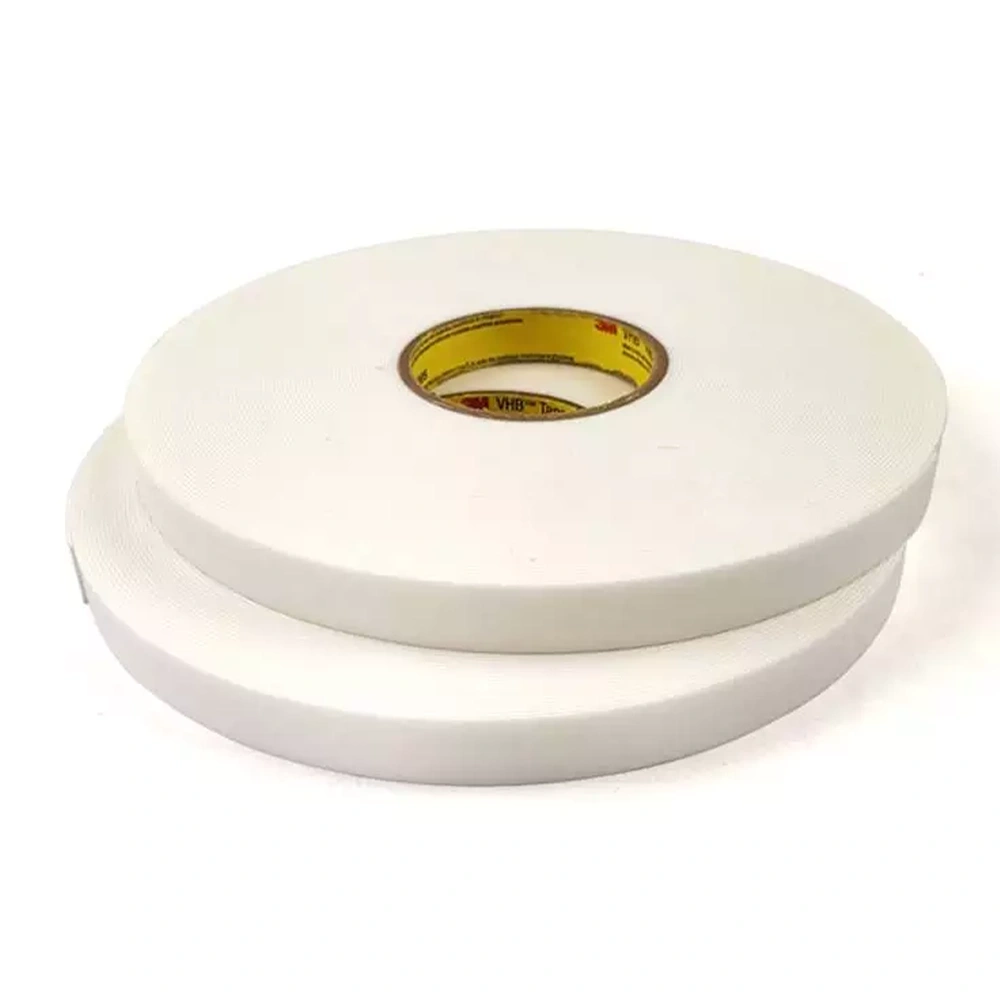

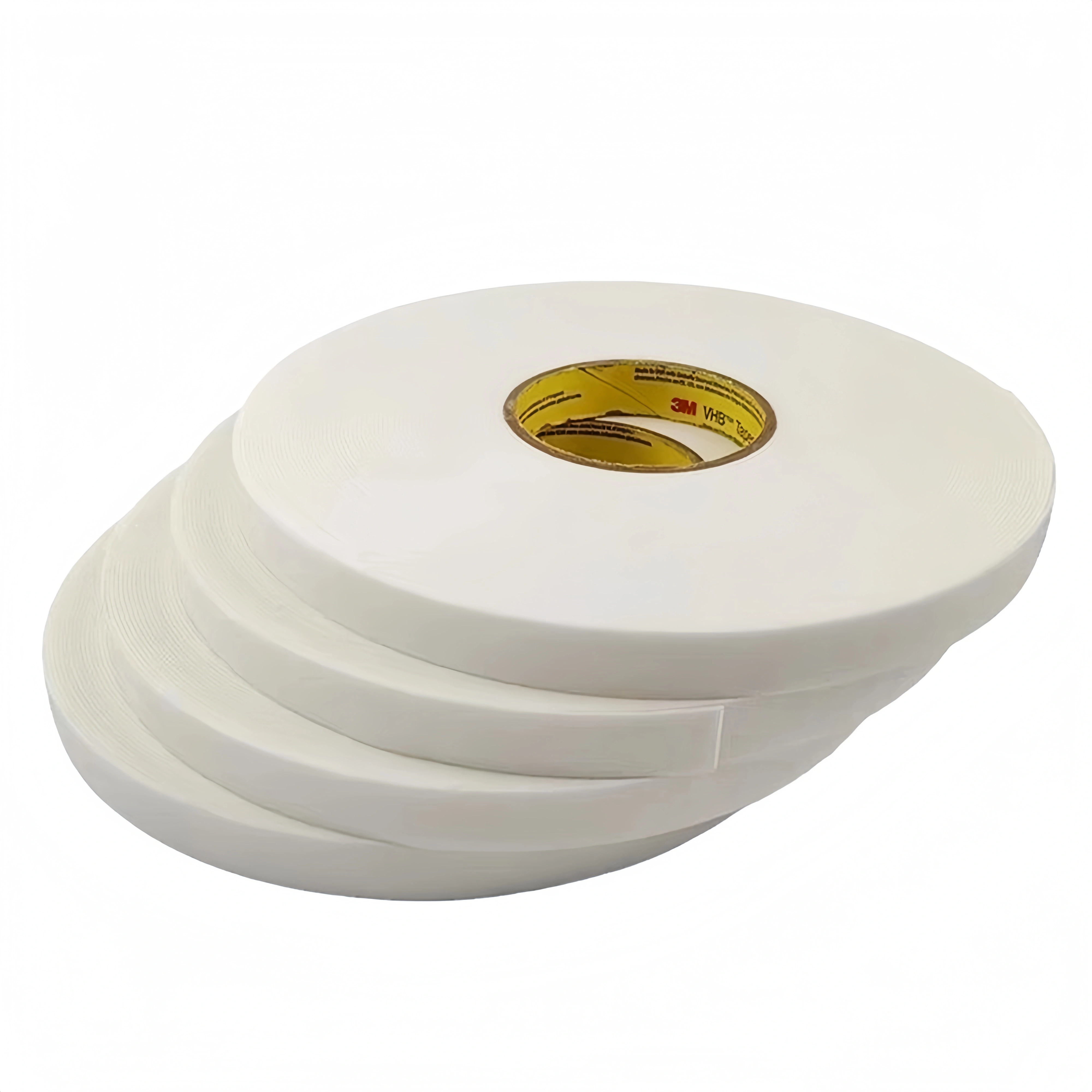

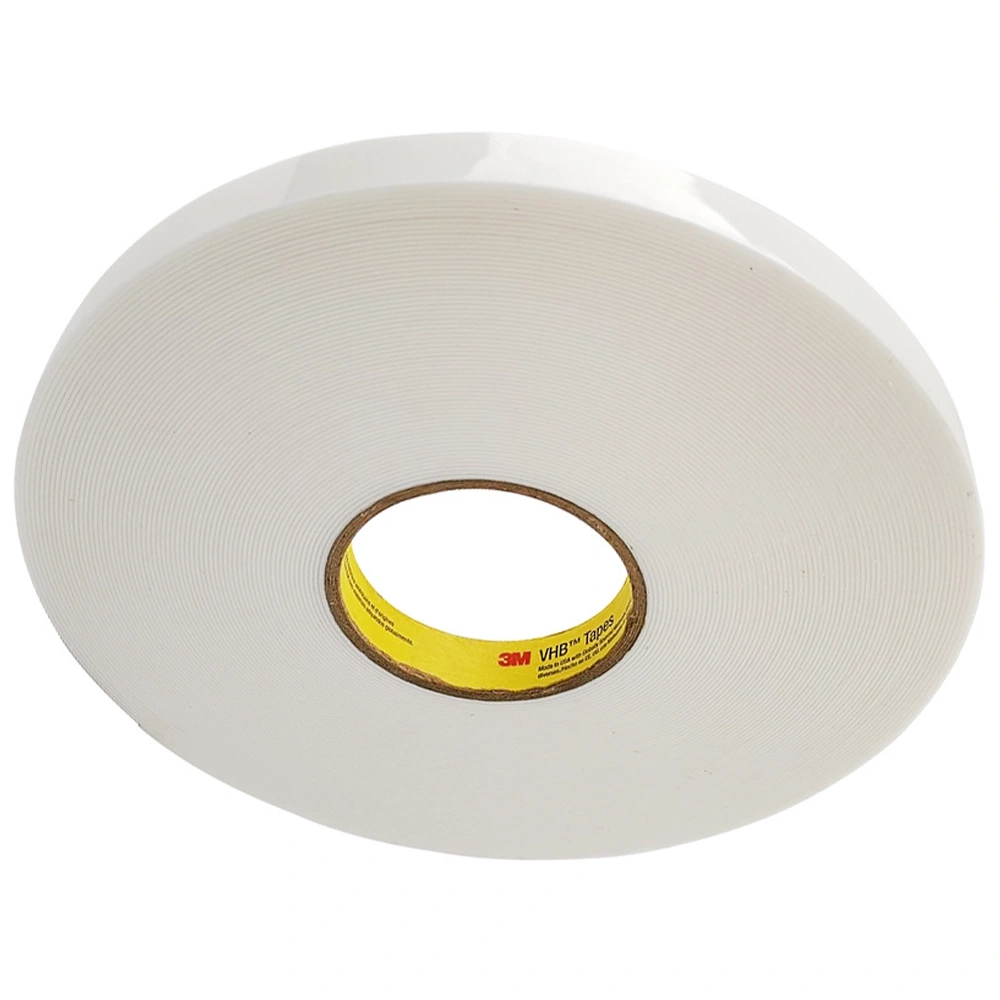

| Product Name | 3M 4955 Tape |
| Model | 4955 |
| Construction | VHB (Very High Bond) Acrylic Foam Tape |
| Thickness | 2.0mm (0.080 inches) |
| Color | White |
| Size | Typically 610mm x 33m (customizable) |
| Adhesive Type | Acrylic Adhesive |
| Adhesive Performance | Strong adhesion to various materials such as metal, glass, plastic, and wood |
| Short-term Temperature Resistance | Up to 204°C (some sources mention 149°C) |
| Long-term Temperature Resistance | 93°C (some sources indicate stability up to 149°C for long-term use) |
| Storage & Application Environment | Store at 15-28°C, 40%-70% humidity |
| Application Temperature Range | 21-38°C (70-100°F); not suitable for bonding if initial bonding temperature is below 10°C (50°F) |
| Bonding Instructions | Bonding surfaces must be clean and dry; apply even pressure of 2.0kg/cm² or more with a roller for 3-5 seconds; allow 24 hours for cure |
| Key Features | Replaces rivets, welds, and screws with a permanent bonding solution; weather-resistant, UV-resistant, solvent-resistant; excellent sealing performance; good cushioning effect |
| Applications | Bonding of high-surface-energy materials such as metal, glass, and most plastics; fixing and assembly in automotive, electronics, construction, and other industries |
description
Features
1. Ultra-high bond strength: Provides permanent bonding, suitable for a variety of materials (metal, plastic, glass, composites, etc.).
2. Shock absorption performance: The closed-cell acrylic foam substrate has excellent shock absorption and cushioning properties, suitable for dynamic load applications.
3. Sealing: Effectively prevents water, dust and air penetration, providing sealing protection.
4. Durability: Anti-aging and UV resistance, suitable for long-term outdoor use.
5. Temperature resistance: Suitable for a wide temperature range (-40°C to +90°C).
6. Chemical resistance: Resistant to a variety of chemicals and solvents.
7. Flexibility: The tape is flexible and easy to fit irregular surfaces.
8. Ease of use: Can be manually or mechanically bonded, easy to use.
9. Environmental protection: Meets environmental standards, safe and non-toxic.
10. No need for mechanical fixing: Reduces the need for screws or rivets and simplifies the installation process.
Application areas
1. Construction industry
For permanent bonding of curtain walls, metal panels, decorative panels and signs.
Applicable to bonding of glass, metal and composite materials.
2. Automotive industry
Used for high-strength bonding of automotive interior and exterior trims, panels and logos.
Applicable to fixing of body panels, decorative strips and reflectors.
3. Electronic equipment
Used for fixing and damping of electronic components, display screens and housings.
Applicable to electronic equipment that requires shockproof and high temperature resistance.
4. Industrial manufacturing
Used for shock absorption and permanent bonding of mechanical equipment and components.
Applicable to the installation and fixing of heavy equipment.
5. Home appliance manufacturing
Used for fixing and damping of panels and components in home appliances.
Applicable to home appliances such as washing machines, refrigerators and air conditioners.
6. Packaging industry
Used for shock absorption and bonding of high-end packaging boxes and display racks.
Applicable to packaging applications that require high strength and aesthetics.
7. Transportation
Used for shock absorption and bonding of parts in ships, aircraft and railway vehicles.
Applicable to the fixing of cabin trims and external logos.
8. Other fields
Used in any occasions where high-strength bonding, shock absorption and sealing are required.
Suitable for exhibition displays, sign installation and DIY projects.
