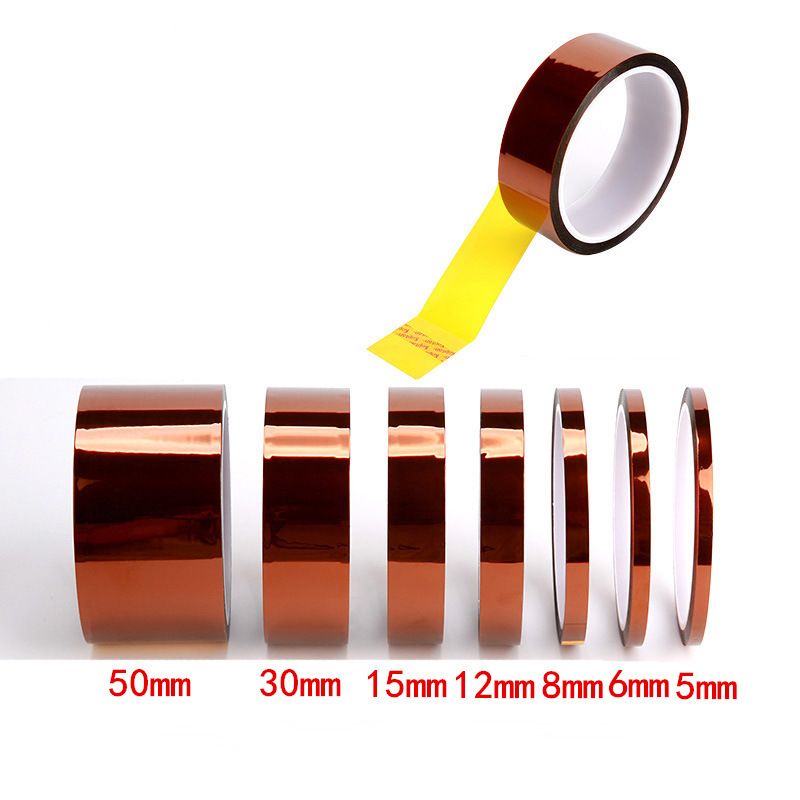

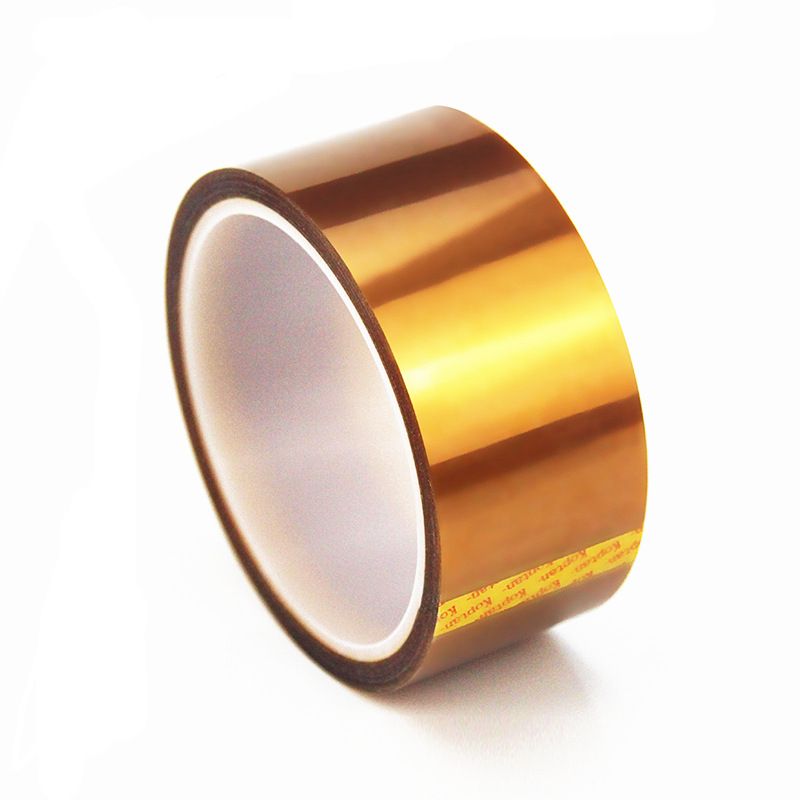

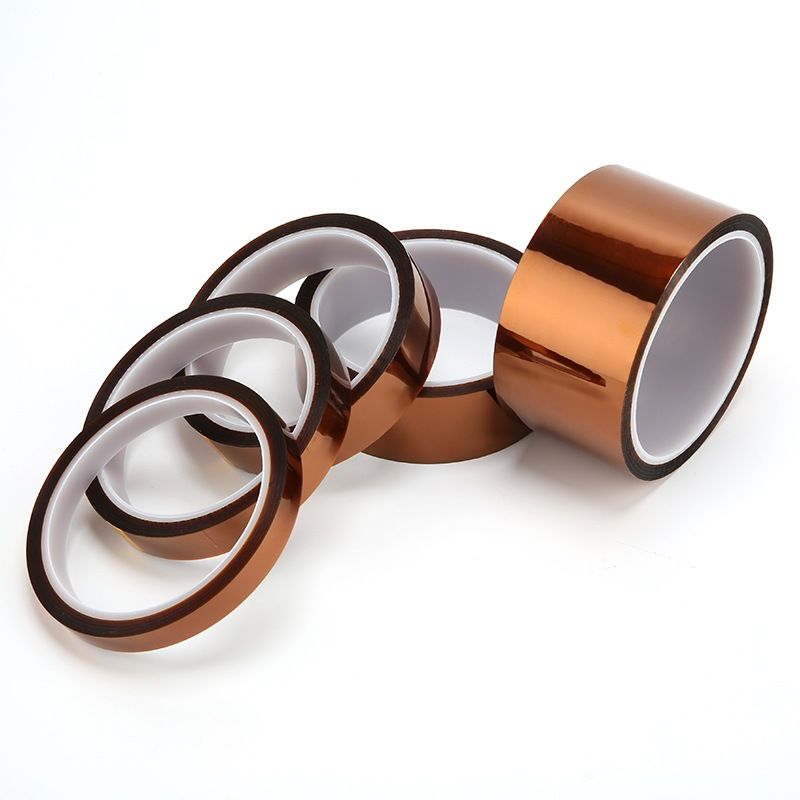

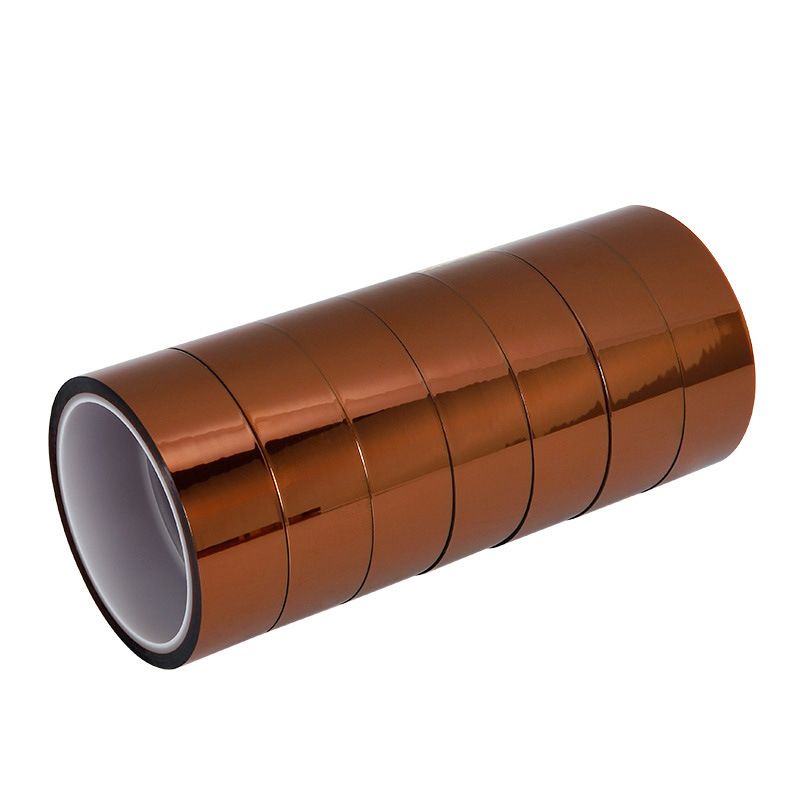

Polyimide Tape with Liner Description:
Polyimide tape with liner is a type of high temperature resistant tape made of polyimide film coated a silicone adhesive backing and with the release liner. We are professional polyimide tape manufacturer, who can offer the OEM & ODM service to each customer.
The tape is commonly used in electronic manufacturing, electrical insulation, and other high temperature applications due to its excellent thermal and electrical insulation properties.
The liner, also known as the release liner or backing paper, is a thin layer of material that covers the adhesive side of the tape, protecting it from dust, dirt, and other contaminants until it is ready to be used. The liner is typically made of materials such as silicone-coated paper or polyethylene terephthalate (PET) film.
Polyimide tape with liner is available in a range of thicknesses, widths, and lengths to suit various application needs. The tape is easy to apply and can be cleanly removed from surfaces without leaving any residue behind.
Polyimide Tape with Liner Application:
With the added easy release liner, Polyimide tape with liner is ideal for die cutting applications and is much easier to handle.
Polyimide Tape with Liner Model List:
| Product Number: | Tape Thickness: | Liner Thickness: | Adhesion to Steel: |
|---|---|---|---|
| XH-12530KP/L | 30 microns | 75 microns | 3.5 N/25mm |
| XH-2540KP/L | 40 microns | 75 microns | 3.5 N/25mm |
| XH-2550KP/L | 50 microns | 75 microns | 4.5 N/25mm |
| XH-2555KP/L | 55 microns | 75 microns | 5.5 N/25mm |
| XH-2560KP/L | 60 microns | 75 microns | 6 N/25mm |
| XH-2570KP/L | 70 microns | 75 microns | 7 N/25mm |
| XH-5070KP/L | 70 microns | 75 microns | 4 N/25mm |
| XH-5080KP/L | 80 microns | 75 microns | 5.5 N/25mm |
| XH-50100KP/L | 100 microns | 75 microns | 8 N/25mm |
| XH-75100KP/L | 100 microns | 75 microns | 4.5 N/25mm |
| XH-75120KP/L | 120 microns | 75 microns | 8 N/25mm |
| XH-100150KP/L | 150 microns | 75 microns | 8 N/25mm |
| XH-125180KP/L | 180 microns | 75 microns | 8 N/25mm |
Polyimide Tape with Liner Actual Show Video:
Why Choose Us:
– Firstly, we are a professional manufacturer, with 16 years of polyimide tape production experience, has a huge advantage in price and quality.
– Secondly, we have a large number of customers and fast transportation channels to ensure the timeliness of customers receiving goods.
– Finally, we can provide quality assurance services for each customer, if there is a quality problem, free return.
– The Most important thing is that we always focus on becoming the world’s top adhesive tape manufacturer, the quality of our products is perfectly equal to that of 3M brands.
