1. Product Overview
A high-temperature resistant glass cloth electrical tape designed for extreme environments, ideal for insulation in motors, transformers, and other heat-intensive electrical applications.
Key Features:
✔ Glass fiber backing – High tensile strength, tear-resistant
✔ Silicone adhesive – Reliable bonding even at extreme temperatures
✔ UL 510 & IEC 60371 certified – 600V electrical insulation rating
✔ Resistant to oils, solvents, acids, and UV exposure

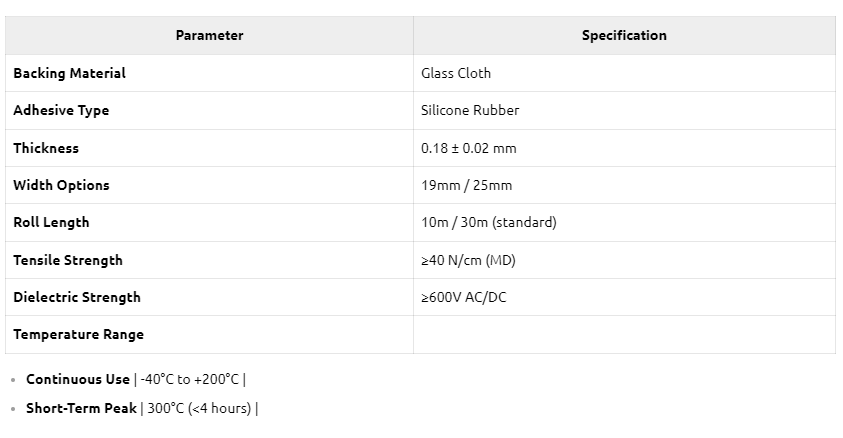

2. Technical Specifications
3. Performance Benefits
✅ Superior Heat Resistance – Withstands continuous 200°C, peak 300°C (4 hrs)
✅ Mechanically Tough – Resists tearing, abrasion, and stretching
✅ Chemical & UV Resistant – Performs in harsh industrial environments
✅ Flexible Conformability – Wraps tightly around irregular surfaces
Compared to Standard PVC Tape (e.g., 3M™ 130C):
▸ 3x higher temperature resistance
▸ Better durability in oily/chemical conditions
4. Typical Applications
Electric Motors & Generators – Coil winding, lead wire insulation
Power Transformers – High-heat junction protection
Industrial Heating Systems – Heating element sealing
Automotive & Aerospace – Engine bay wiring harnesses
Harsh Environments – Oil refineries, chemical plants
