Based Material

Polyester Film

Adhesive

Silicone Adhesive

Liner

Without liner

Adhesive Side

Single Sided or Double Sided

Thickness

0.05mm, 0.06mm, 0.08mm, 0.1mm, Customized

Width

3mm, 5mm,  6mm, 8mm, 10mm, 12mm, 15mm,  20mm, 24mm, 25mm, 30mm, 40mm, 48mm, 50mm, 500mm, Customized Width

Length

33m, 66m

Peel Strength

≥ 8.0 N/25mm

Tensile Strength

≥ 115 N/25mm

Voltage Resistance

4-6KV

Elongation Break

35%-50%

Lowest Temperature

-70 ℃

Heat Resistance

Short term 200℃, Long term 180℃

Feature

High insulation, high temperature and low temperature resistance, acid and alkali resistance, low electrolysis, good mechanical properties, anti-friction, tear resistance, special adhesive treatment, strong adhesion, easy to die cut. After being torn off, there is no residue left on the masked surface.

Usage

High temperature protection, Insulation / Lithium battery extremely car fixed, Transform coil wrapping and fixed, Chip insetting, 3D printer, Masking for powdercoat painting, Holding and splicing difficult to stick to surfaces such as silicone liner, Glass edge protection / metal surface protection, Heat press,Solar Panels,Fiber optics cables, High temperature masking, All kinds of insulation Die-cuts, Discs, Galvanization and welding protection, Electrical insulation for transformer,motor,coils, Protection of PCB in wave soldering and reflow soldering, Used for fixing the lithium batter"s positive pole and negative pole in high grade electric appliance.

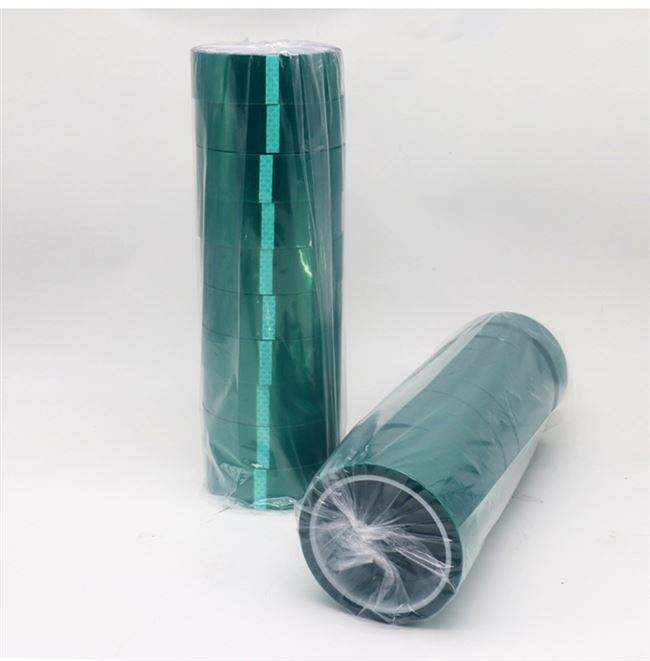

Packing

Packed by shrink film and bubble film, and then laod into a stable carton, customized packaging.

Payment Term

T/T, L/C, Pay in Alibaba Via Credit Card/ T/T, etc.

Shipping Term

By DHL, FedEx, UPS, ARAMEX, Other cheaper solutions, Air or Sea.

Contact US Now for the data sheet, price and shipping cost!
