application

1.For use on high voltage cables to provide good resistance to arcing and leakage traces.

2.For insulation protection in power cables, switchgear and all kinds of electrical equipment.

3.For sealing of water pipes and faucets.

4.For temperature-resistant insulation class H.

5.Emergency pipeline rehabilitation, automotive engine compartment pipeline rehabilitation.

6.Cushioning protection for sporting goods, tool grips.

Property

Product Features

1.Excellent resistance to arcing, leakage and ozone.

2.Excellent insulation properties, weathering properties, low temperature resistance, self-adhesion.

3.Good temperature resistance, can be used at 180 ℃ for a long time.

4.The surface of the adhesive tape is not sticky to the touch and will not stain the substrate and can be removed by cutting with a knife.

Product specifications

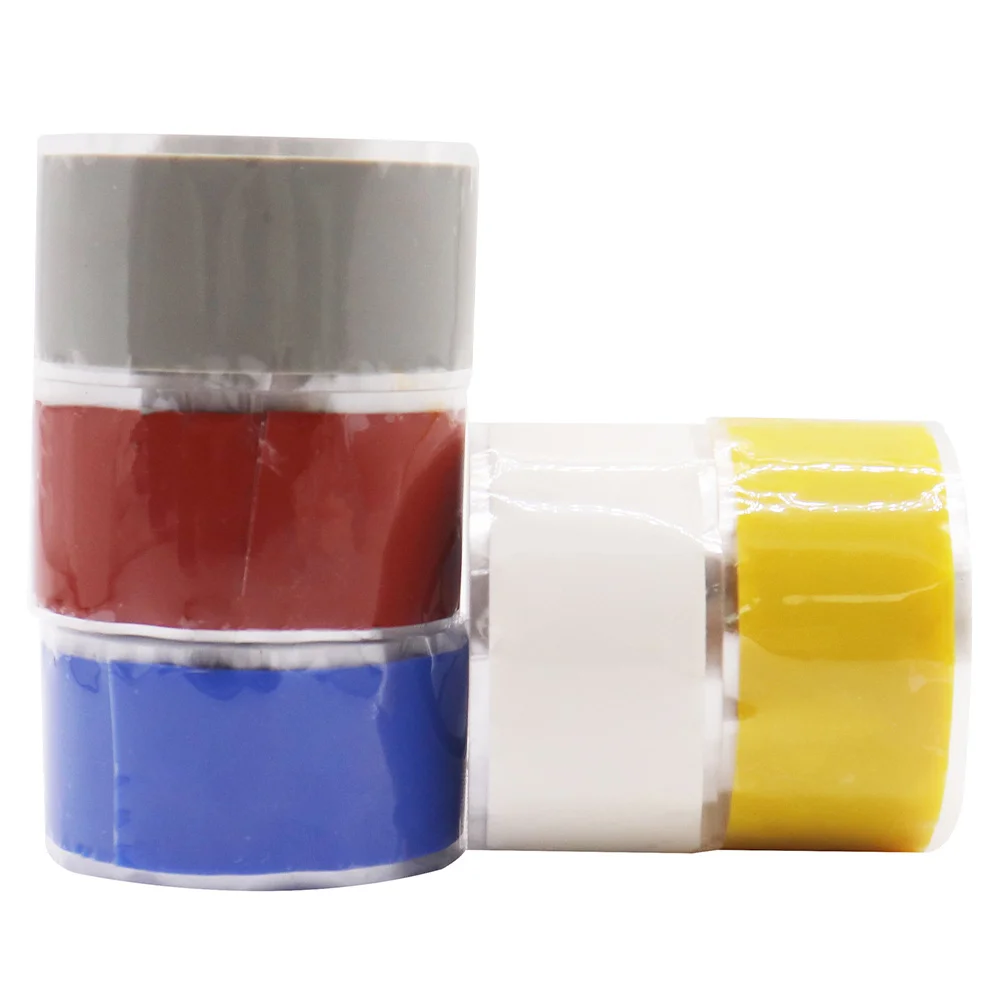

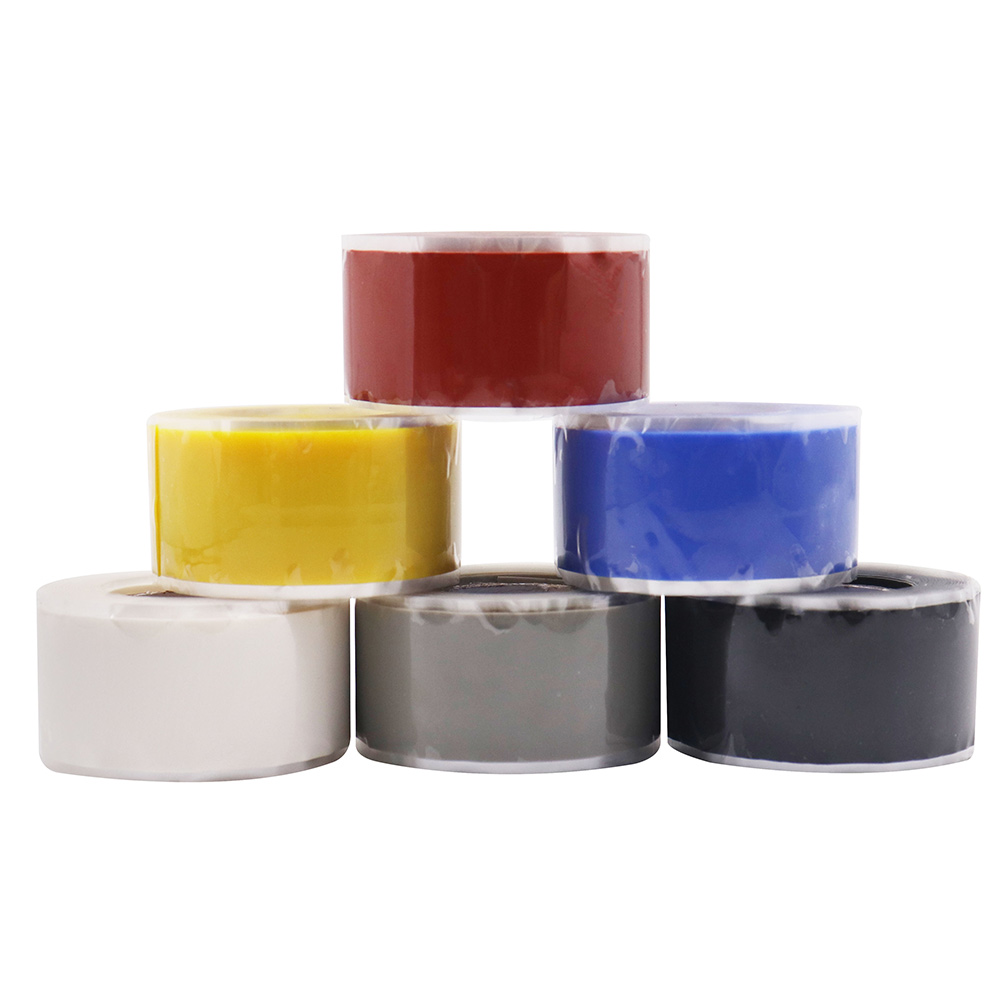

Color: red, yellow, green, blue, gray, black

Common specifications: thickness*width*length

1.3mm*25mm*9100mm

2.5mm*25/50mm*5000mm

3.8mm*25/50mm*5000mm（10kv）

4.0mm*50mm*5000mm（35kv）

5.2mm*25mm*5000mm（35kv）

6.5mm*30mm*5000mm（35kv）

7. Other customization

How to use the product

Remove the barrier film, stretch the tape 10%-100%, wrap 50% over 50%, and wrap two completely overlapping wraps at the beginning and end.
