application
Property
| Property | |||||||||||
| Product Code Technical Parameters | P0306 | P0306A | P0306B | P0307 | P0308 | P0309 | P03095 | P0312 | P0315 | P0306E | P0310GDS |
| Color | Green, Brown, Transparent, Light Yellow, Dark Yellow, White, Black, Red, Blue (Customizable) | ||||||||||
| Total Thickness[mm] | 0.06 | 0.055 | 0.06 | 0.07 | 0.08 | 0.09 | 0.095 | 0.12 | 0.15 | 0.06 | 0.1 |
| Backing Thickness[mm] | 0.025 | 0.038 | 0.038 | 0.025 | 0.05 | 0.05 | 0.025 | 0.075 | 0.1 | 0.025 | 0.025 |
| Backing | PET | ||||||||||
| Adhesive | Silicone | ||||||||||
| 180°Peel Strength[N/inch] | 8 | 8 | 8 | 8 | 7.5 | 10 | 8 | 11 | 10 | 6 | A≥10 B≥11 |
| Tensile Strength[N/inch] | 135 | 150 | 150 | 150 | 150 | 150 | 150 | 175 | 200 | 135 | 135 |
| Elongation At Break[%] | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Long-Term Temperature Resistance[℃] | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| Short-Term Temperature Resistance[℃] | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
description
Product Description

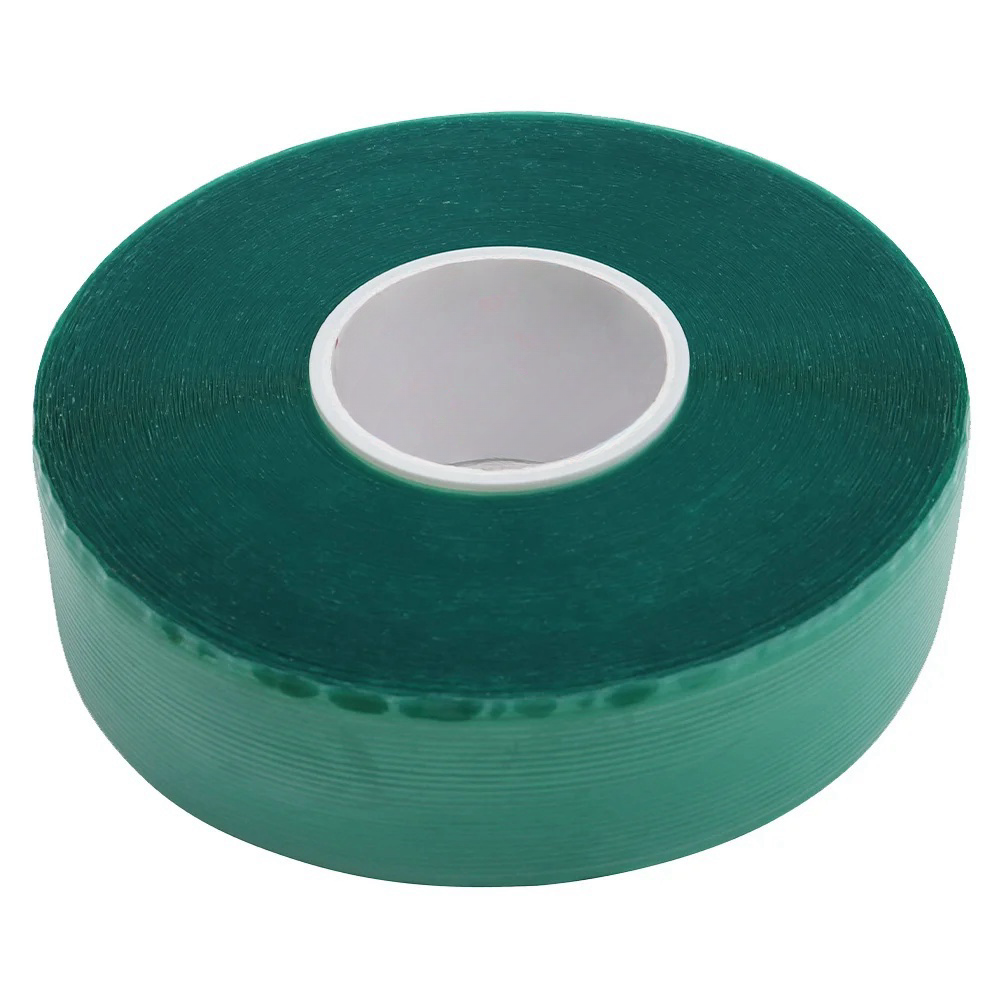

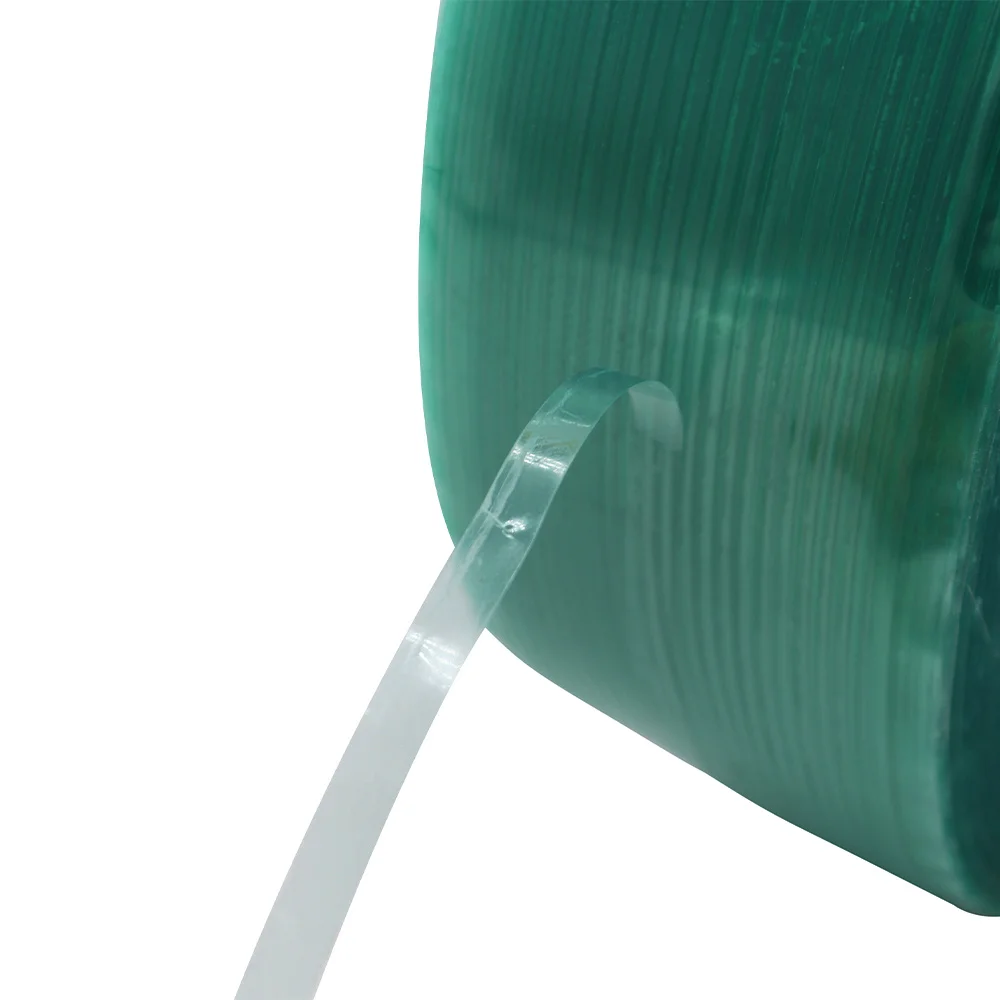

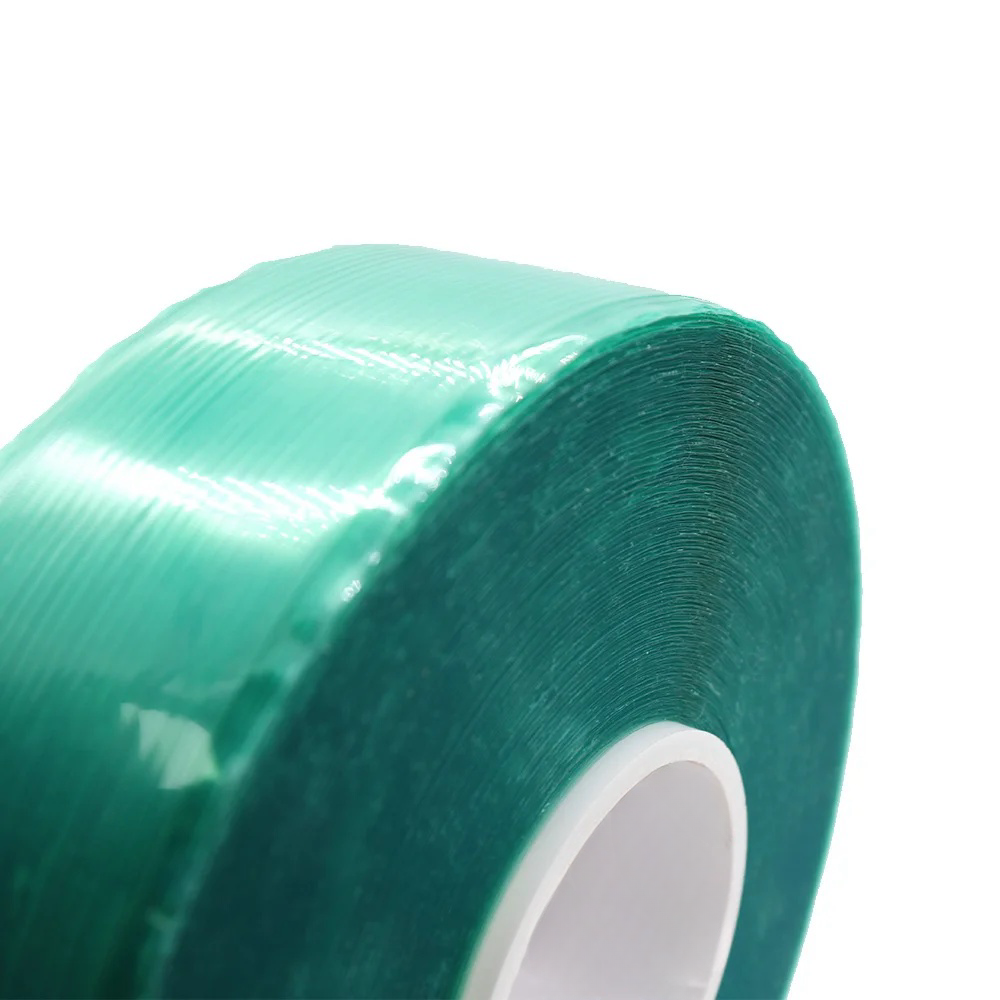

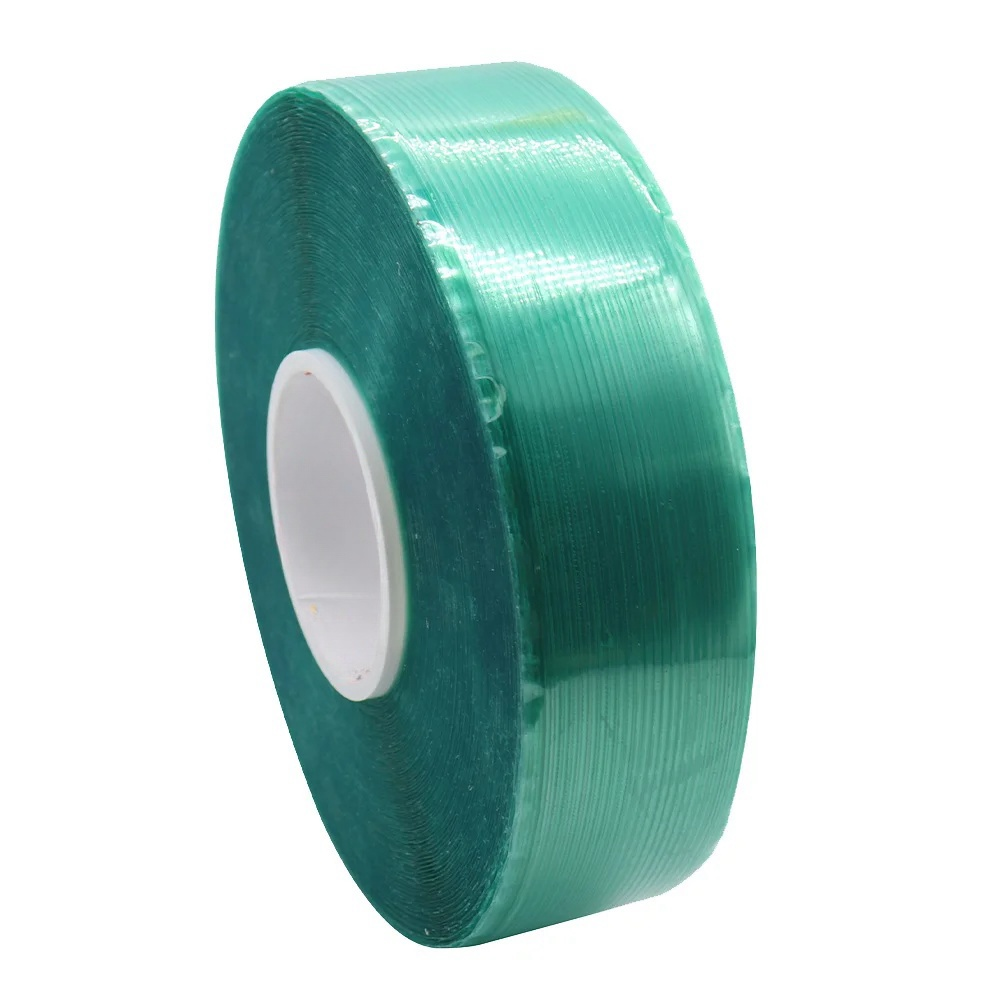

Jumbo roll polyester tape consists of a polyester film backing, single-sided coated with silicone adhesive. PET tape is designed to perform difficult masking operations such as the masking of surfaces during the application of durable powder coating.
Feature
1.PET film tape is easy to apply and remove and leaves no residue on the surface
2. Green pet tape has good viscosity, good serviceability, high temperature, and excellent electrical properties.
3.Excellent initial adhesion and adhesion; no glue residue, no edge warping, no shedding after baking; solvent resistance; acid and alkali resistance; long-term temperature resistance of 220 ℃
Construction
Application：
Jumbo roll polyester tape is used for converting, and masking adhesive seams in metal bonding processes, anodizing, electronic assembly, masking, plating, photo splicing, sublimation printing, shipping, packaging, when painting cerakote or the back of automotive wheels, and many more uses at home, business or laboratory.
1.High Temperature Protection:
Jumbo Roll Polyester Tape offers excellent resistance to high temperatures, making it an ideal choice for applications where heat is a concern. Its heat-resistant properties ensure that it maintains its integrity and adhesion even in extreme thermal conditions, protecting vital components and surfaces from damage caused by overheating.
2.Insulation and Lithium Battery Securement:
Polyester tape is an excellent insulator, effectively blocking the transfer of heat and electricity. In the context of lithium batteries, this tape can be used to create a barrier between the battery and other components, reducing the risk of thermal runaway or electrical shorts. Additionally, its strong adhesive properties allow for secure fixation of the battery in place, ensuring stability and safety during operation.
3.Transform Coil Wrapping and Fixing:
Transform coils often generate significant heat during operation, necessitating effective heat management. Jumbo Roll Polyester Tape can be used to wrap and fix the coils, providing both insulation and structural support. This not only helps dissipate heat but also prevents the coils from moving or vibrating, ensuring stable and efficient operation.
4.Chip Insetting:
In the process of chip insetting, precision and stability are crucial. Polyester tape, with its smooth surface and strong adhesion, can be used to securely hold chips in place during the insetting process. This ensures that chips are accurately positioned and firmly fixed, minimizing the risk of movement or misalignment during subsequent operations.
5.3D Printer Applications:
Jumbo Roll Polyester Tape can also find uses in 3D printing applications. Its durability and heat resistance make it a suitable material for use in 3D printer bed surfaces or as a support material during the printing process. Additionally, polyester tape can be used to create custom fixtures or holders for 3D printed parts, enhancing the functionality and versatility of the printed objects.
