0.3 mm 0.5mm 1mm Heat Spreader Transfer Insulated Thermal Silicone Rubber Sheet Pad-aiyatape

Products Description

Products name	Thermal conductive pad
Thickness	0.3-20mm,or custom
Adhesive	Silicon
Hardness	40-80 shore,or custom
Tensile strength	0.34Mpa
Tear Strength	1.4KN/m
Breakdown Voltage	≥10KV/mm
Flame Rating	V-0
Dielectric Constant	5.41
Thermal Conductivity	1.2W/m.k ,3W/m.k,5W/m.k or custom

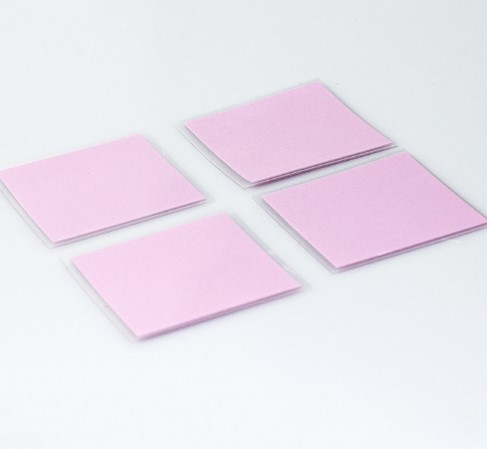

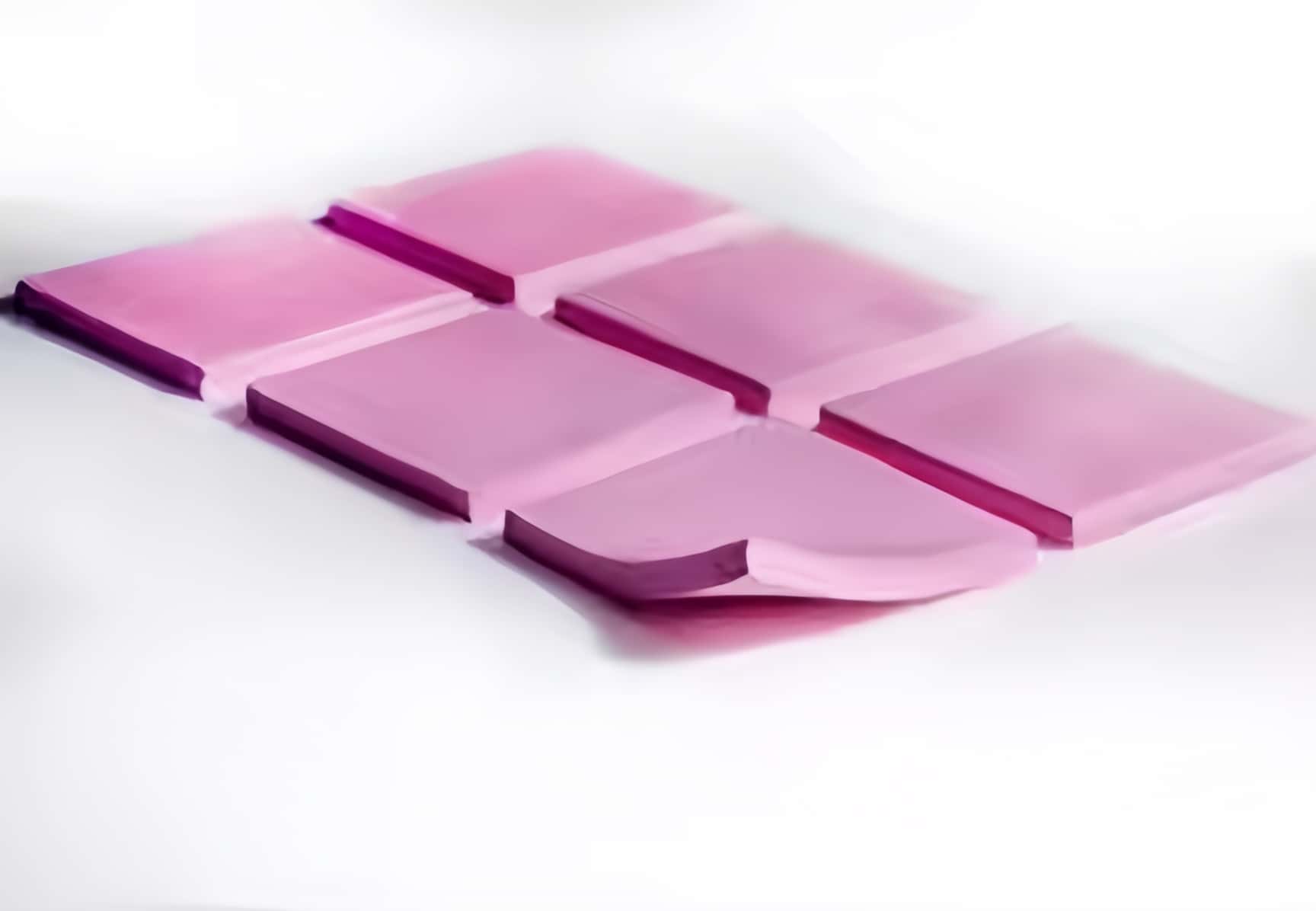

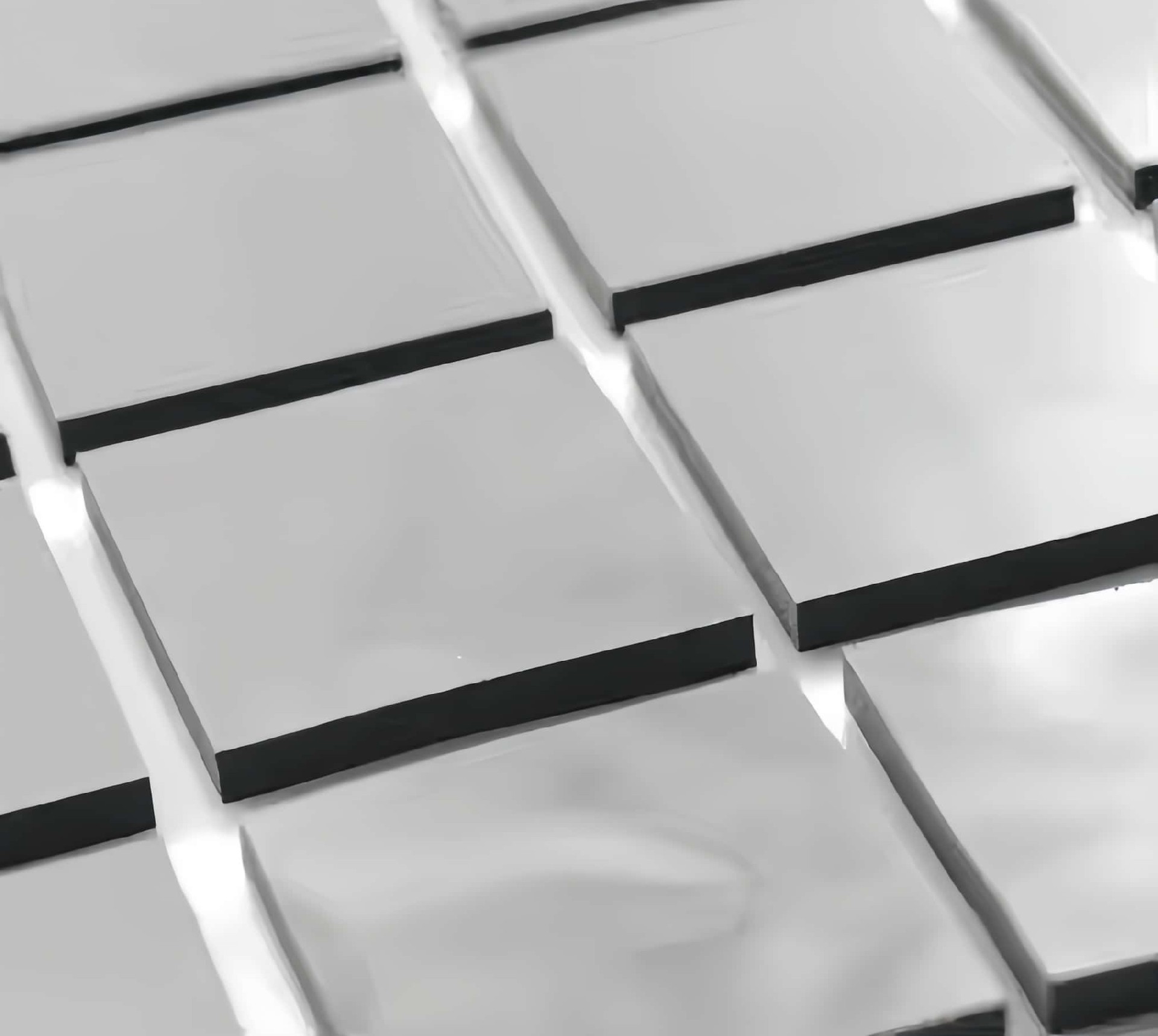

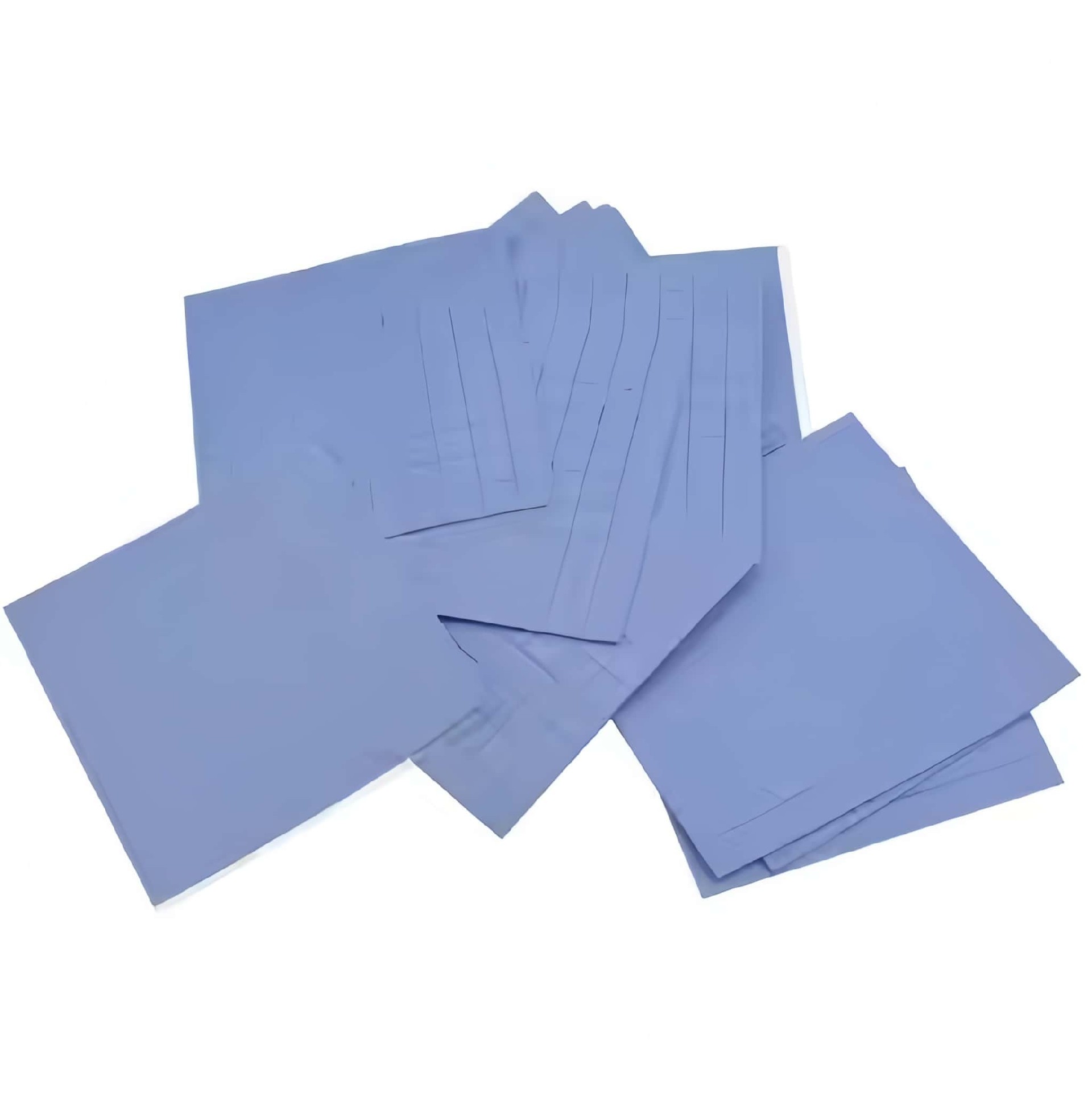

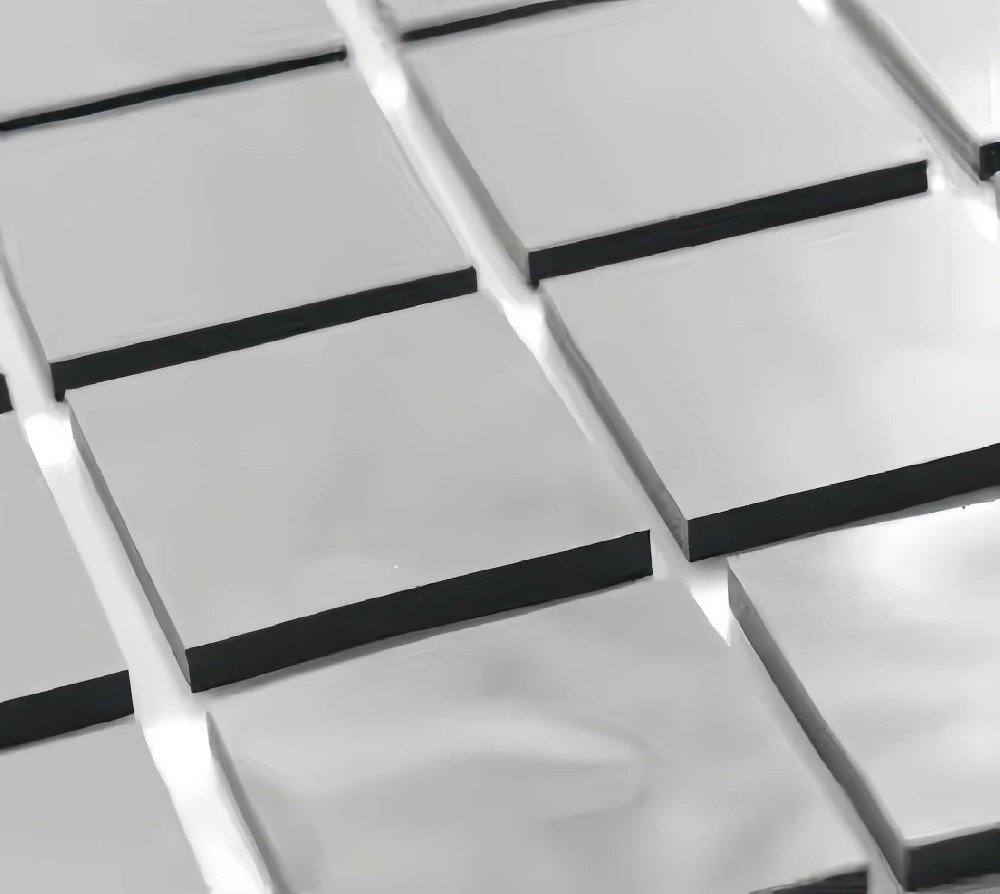

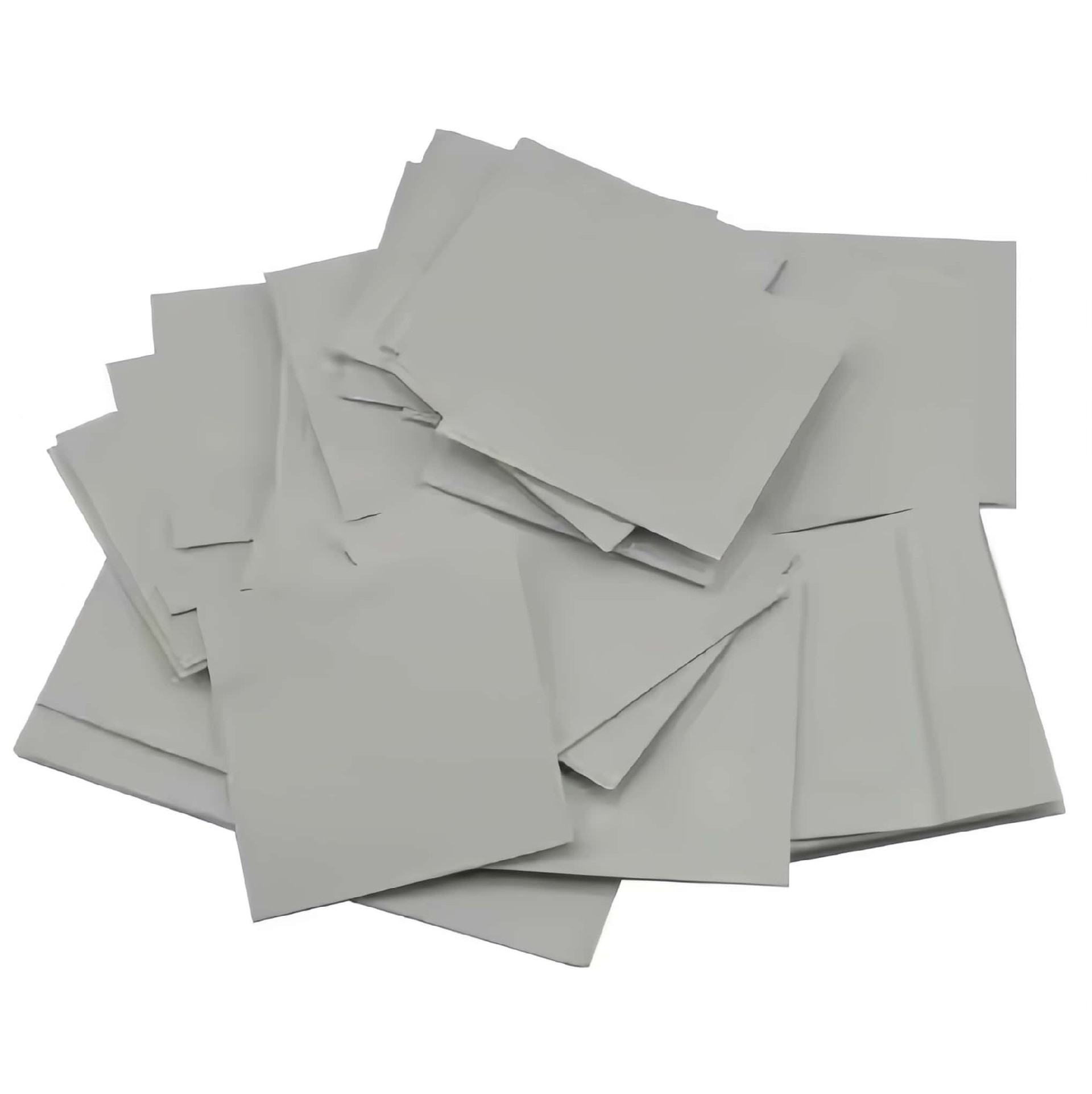

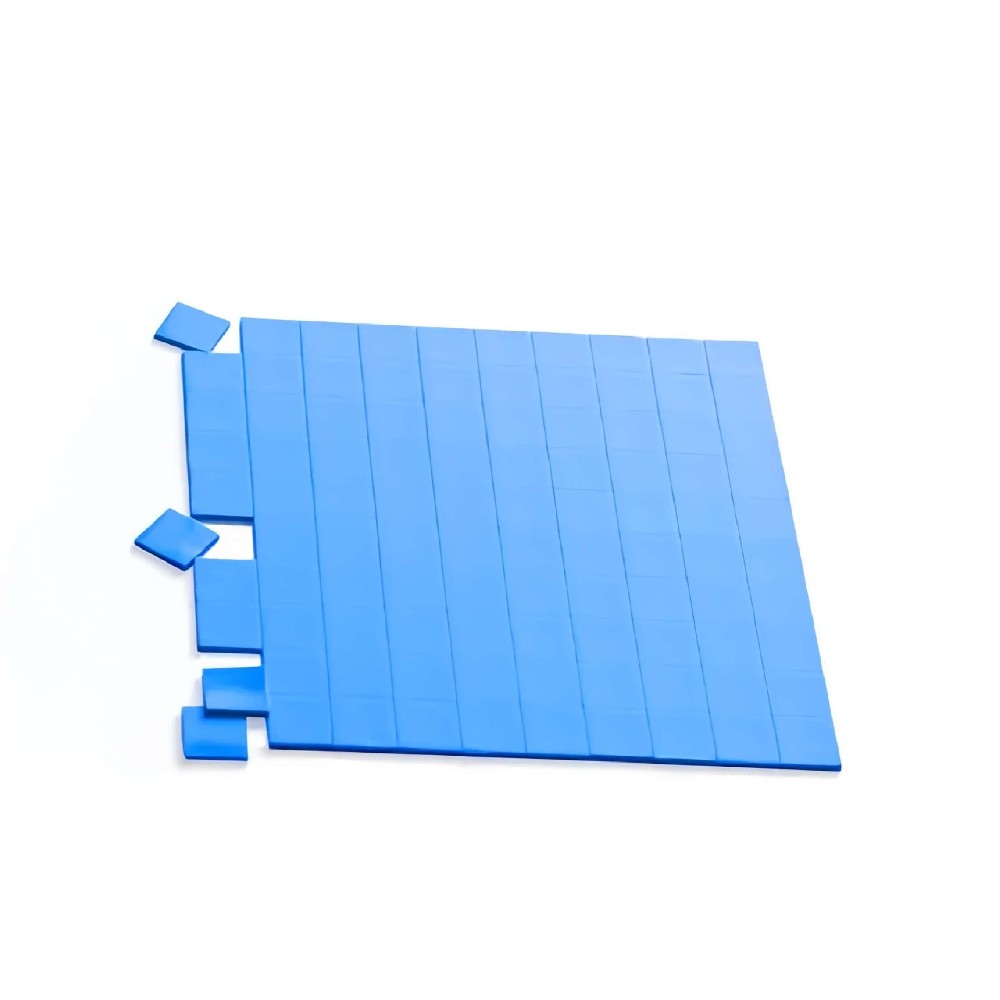

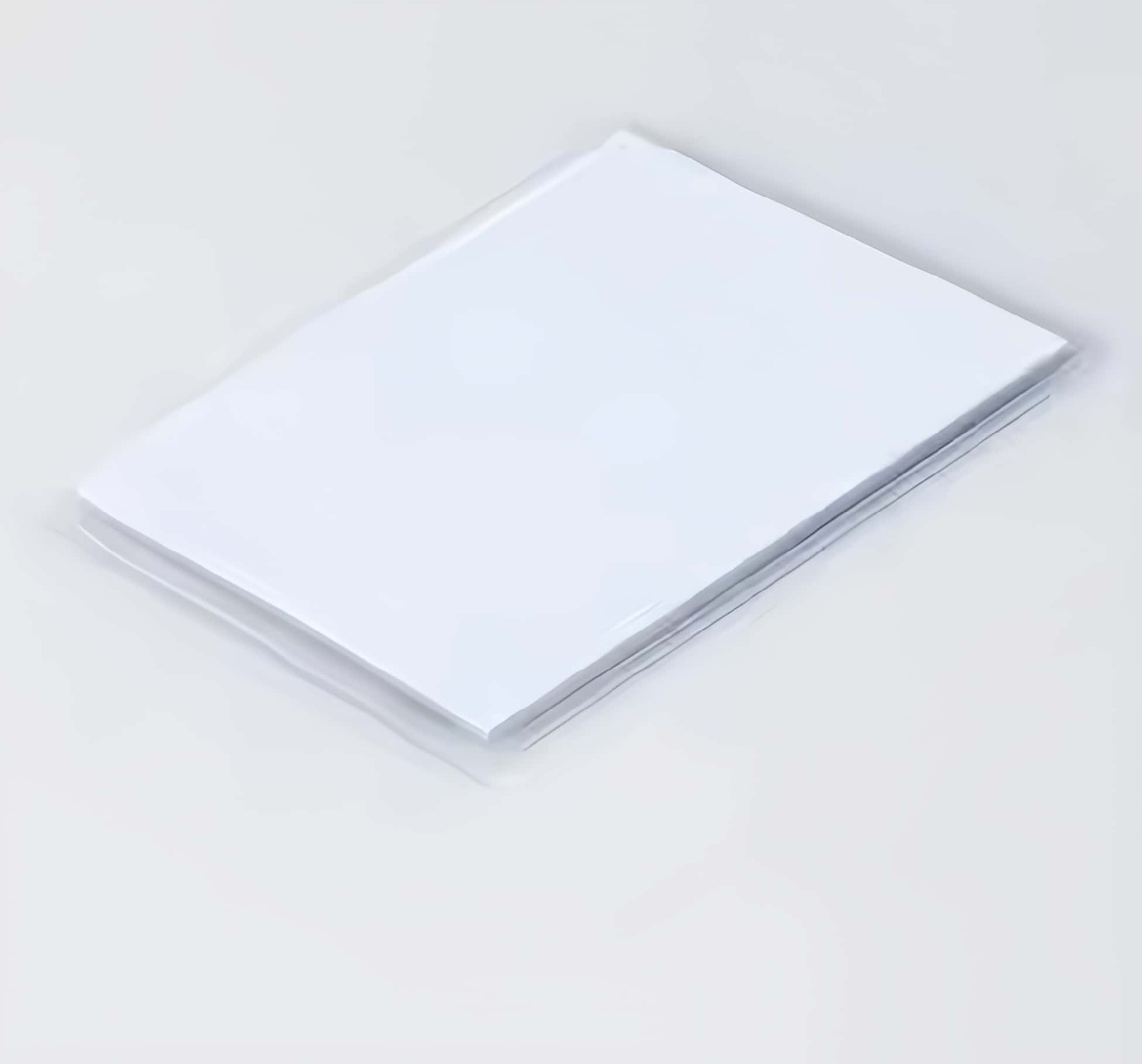

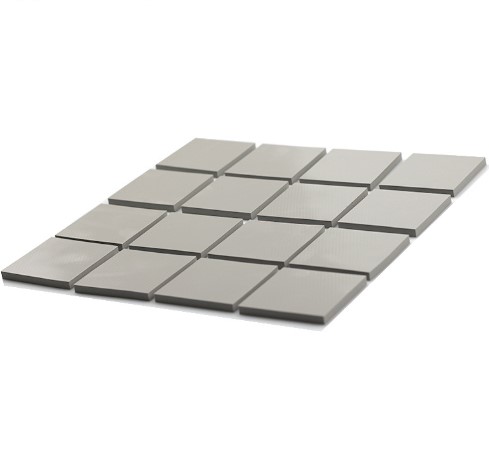

Thermal conductivity silicone pad

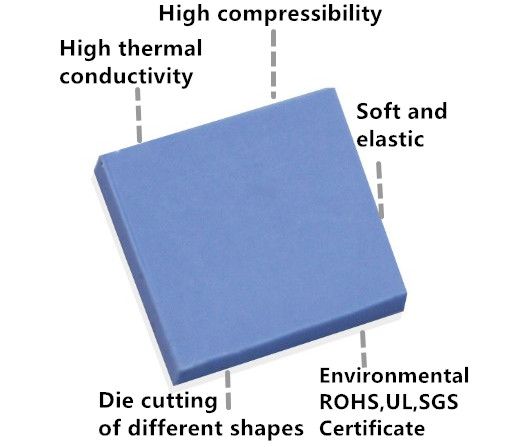

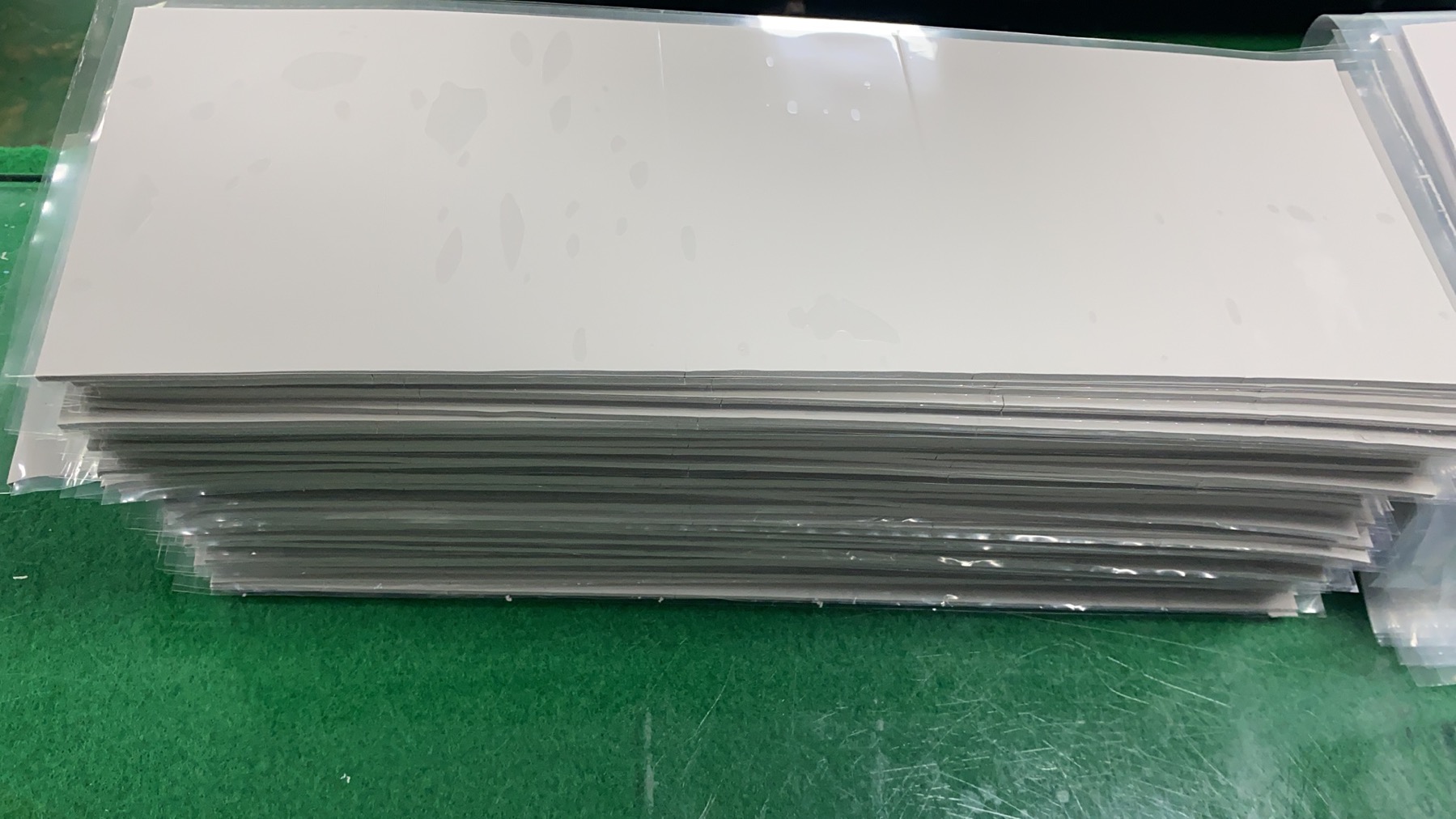

Thermal conductive silicone pad is specially designed for the purpose of high performance thermal conductivity. Pad standard size:400mm*200mm according to customer needs to cut the shapes.

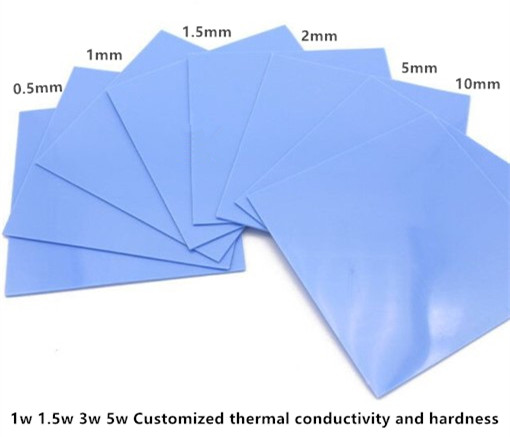

Basic thickness 0.3mm/0.5mm/1mm/1.5mm/2mm/3mm, special size and thickness can be customized.

The product itself is slightly viscous, if need to strengthen the adhesive can be according to customer’s requirement. Product color is mass production, if need special color can be adjusted to the actual situation

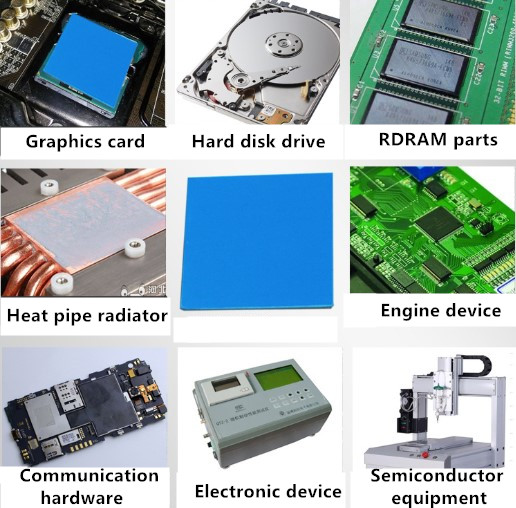

Application

Application：

* Flat panel TV, mobile equipment, high-speed hard disk drive * Computer, PC server, workstation
* LED lighting, lighting equipment

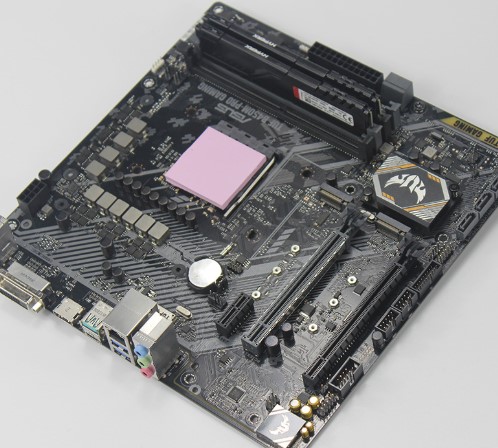

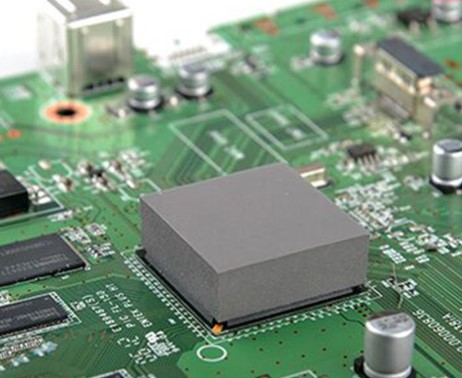

* Between semiconductor and heat sink, processors to heatsinks, GPU to heatsinks
* The chip and chip component

Application：

* HDDVD driver IC
* Power conversion
* Automotive engine/trans mission controls
* GPU VRAM
* Mass Storage Drives
* LCD back-light module
* Network communication equipment
