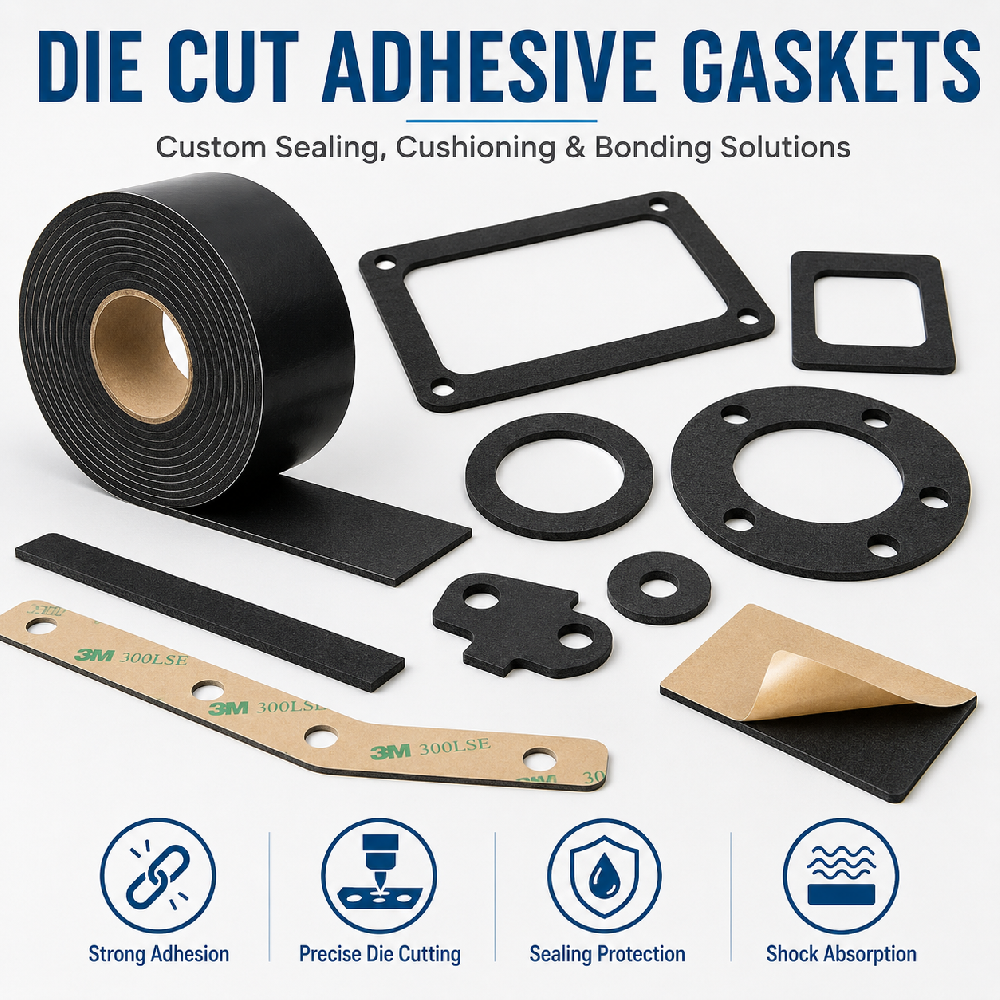

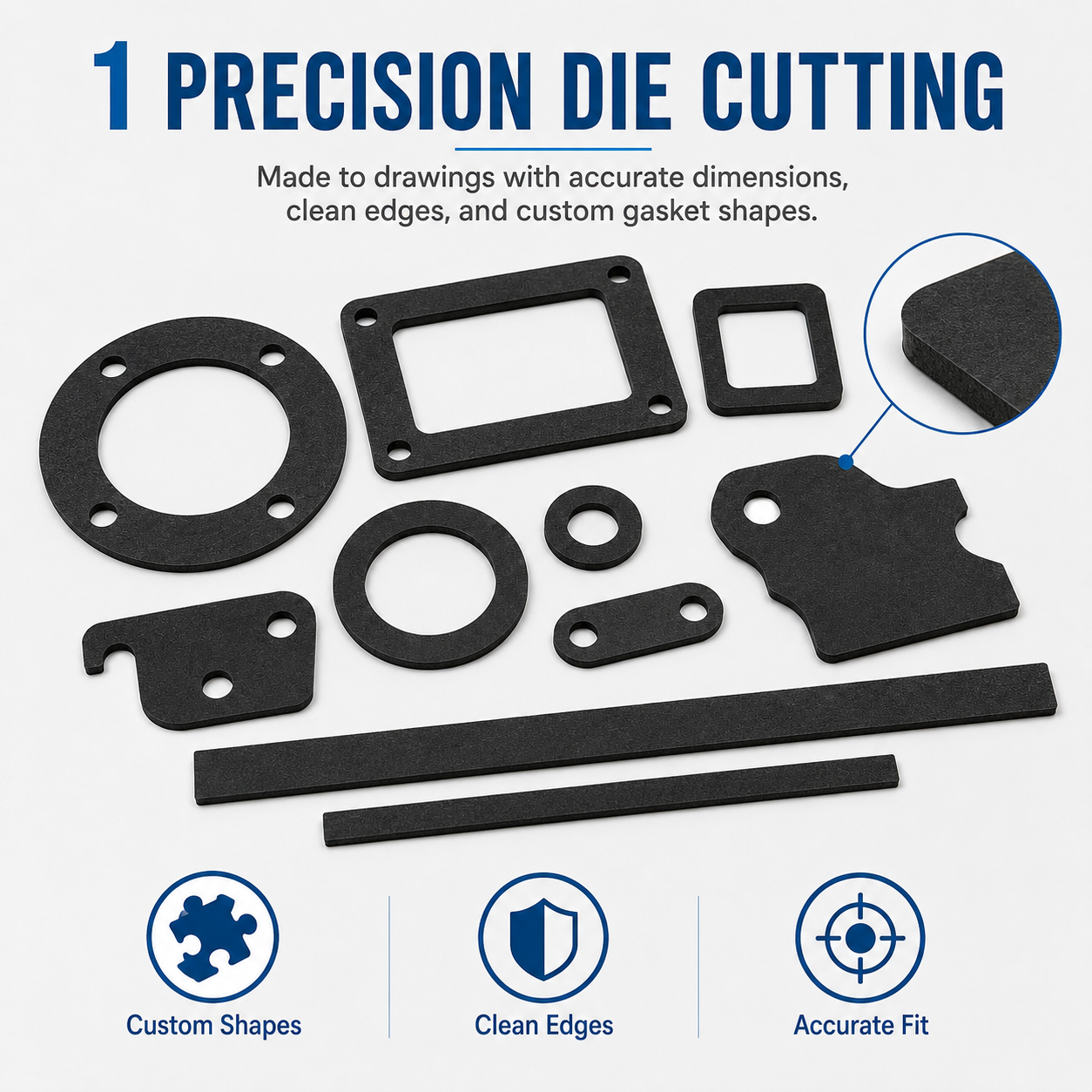

Custom Die Cut Adhesive Gaskets

We manufacture custom die cut adhesive gaskets for sealing, cushioning, shock absorption, vibration reduction, dust protection and component bonding.

Foam, rubber, silicone and other gasket materials can be laminated with single-sided or double-sided adhesive and precisely converted into rings, frames, strips, pads and complex shapes according to customer drawings or physical samples.

Products can be supplied as individual parts, sheets or kiss-cut rolls for manual, semi-automatic and automated assembly.

Main Features

• Customized according to drawings or samples

• Precision cutting tolerance available up to ±0.1 mm, depending on material and design

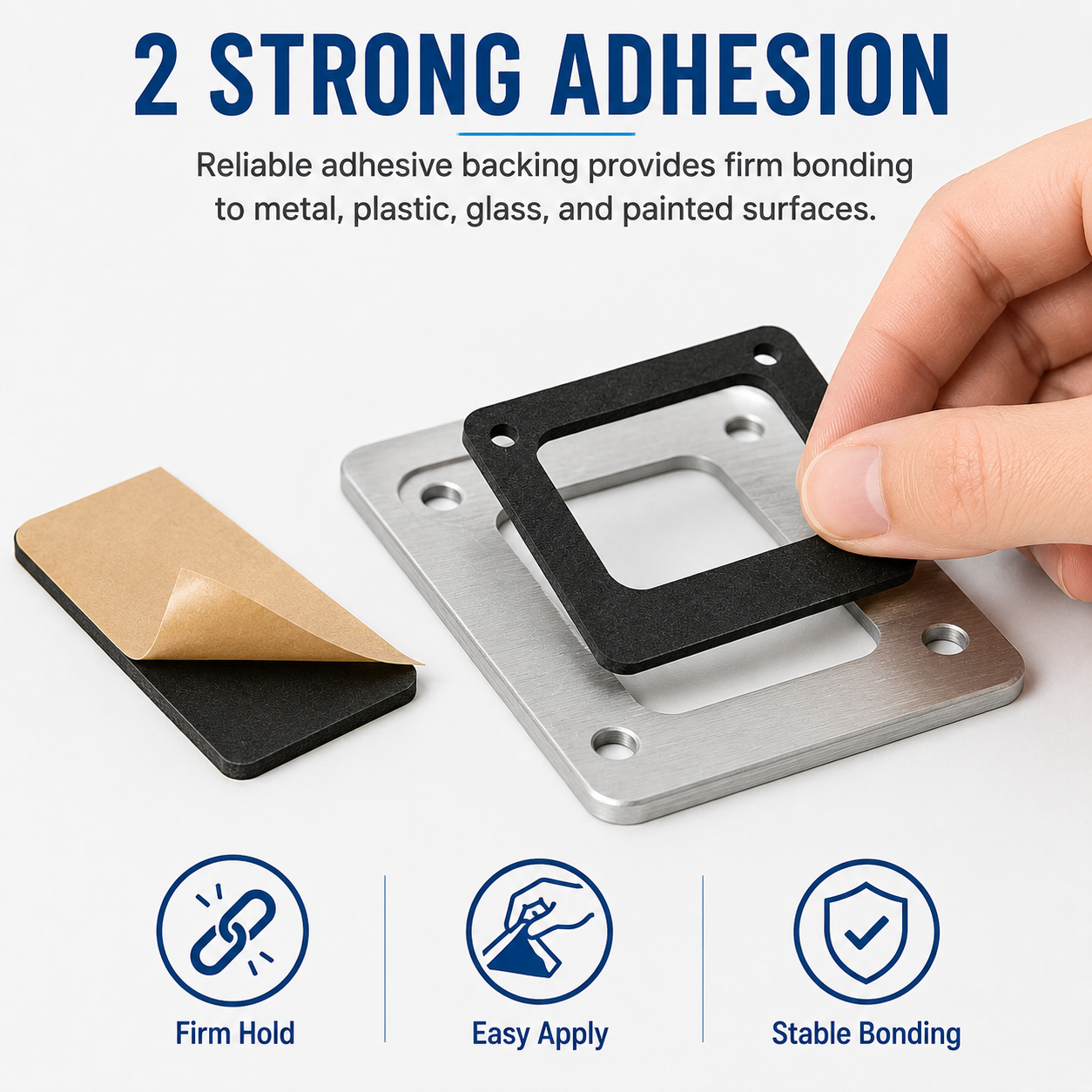

• Strong and stable adhesive performance

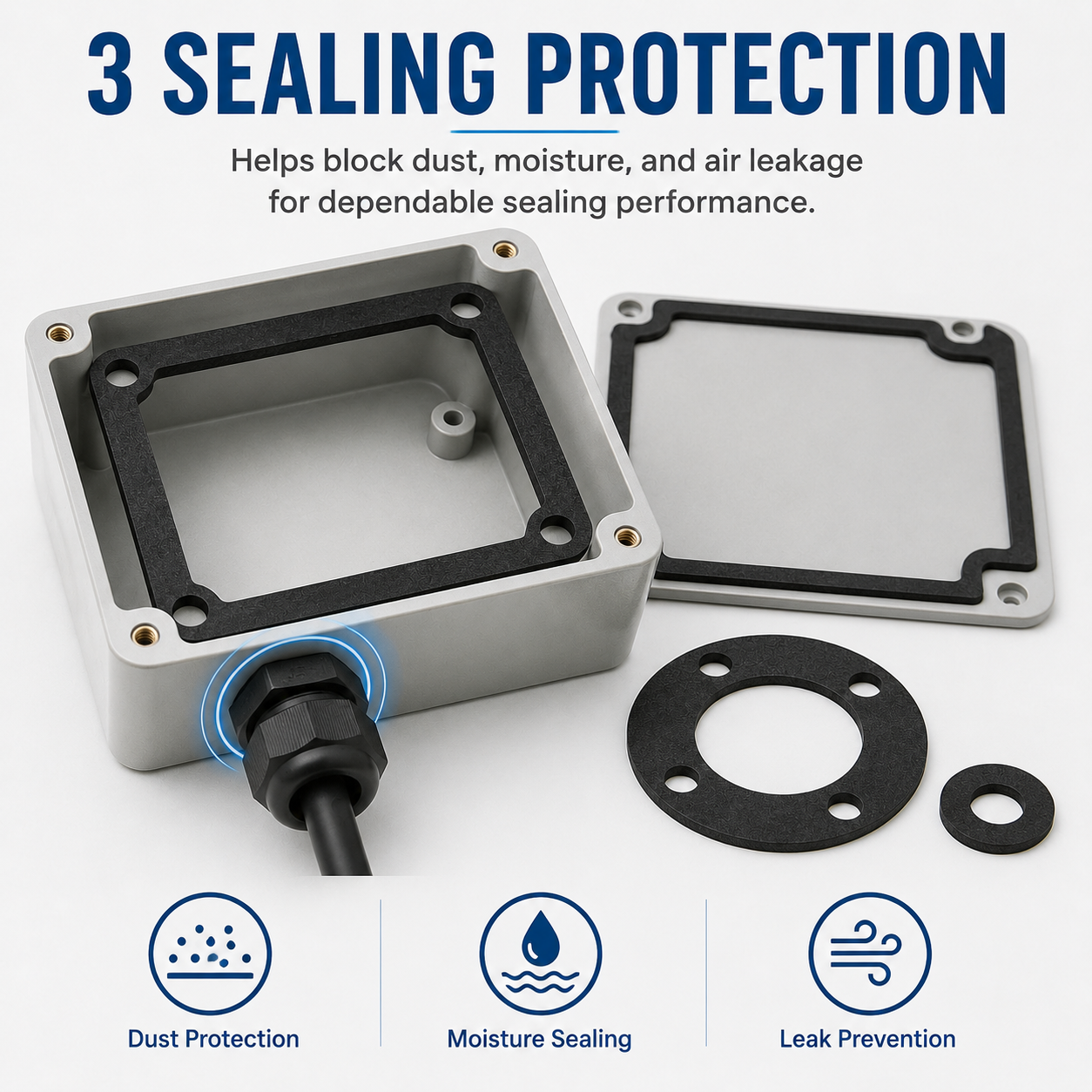

• Effective sealing against dust, air and moisture

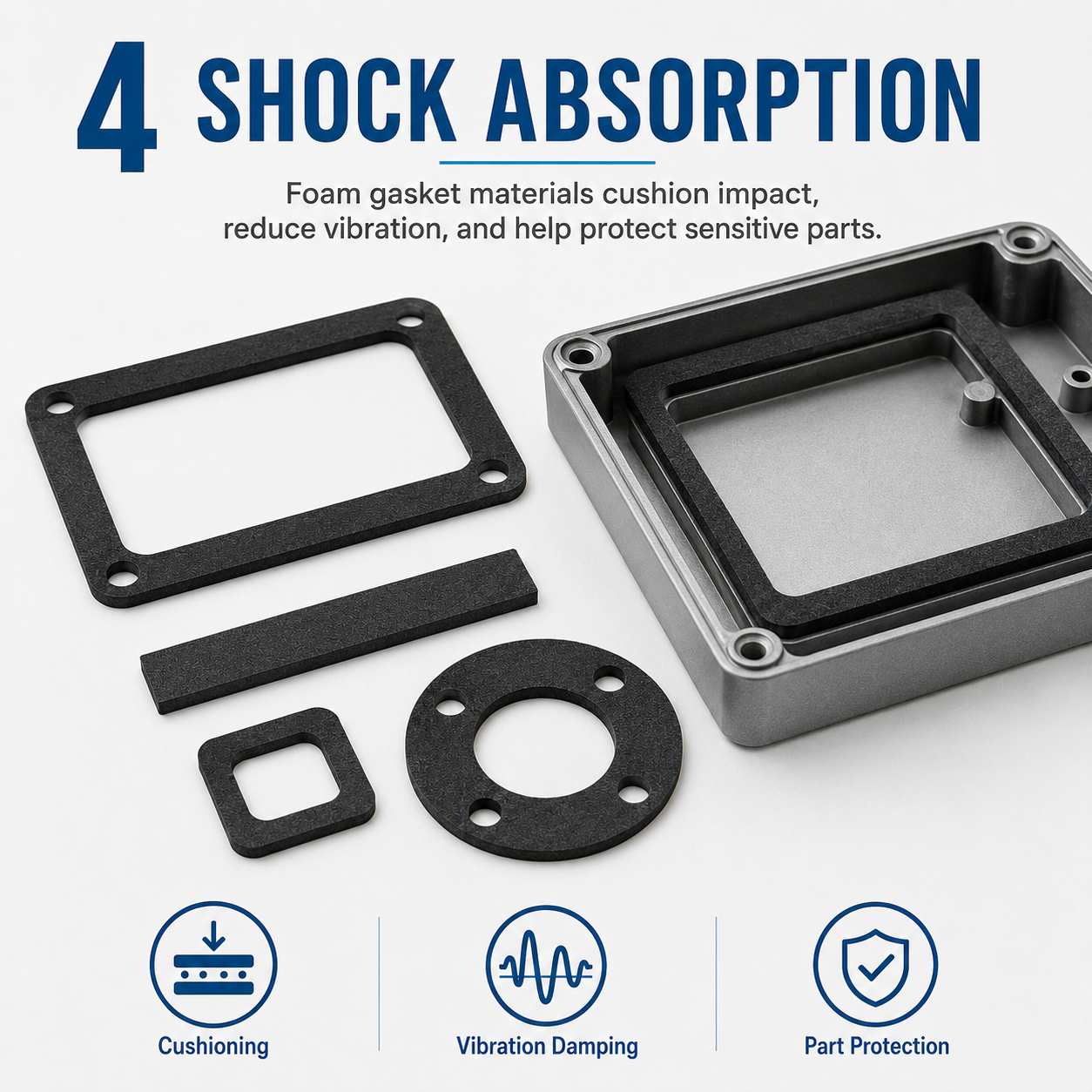

• Good cushioning and shock absorption

• Helps reduce vibration, impact and noise

• Different foam densities and hardness levels available

• Single-sided and double-sided adhesive options

• Easy-peel liners and pull tabs available

• Small-batch prototypes and mass production supported

Available Gasket Materials

Different gasket materials can be selected according to sealing performance, compression, temperature resistance and environmental requirements.

Available options include:

• EVA foam

• PE foam

• PU foam

• EPDM foam

• CR neoprene foam

• PVC foam

• Silicone foam

• Poron polyurethane foam

• Natural rubber

• NBR nitrile rubber

• EPDM rubber

• Silicone rubber

• Neoprene rubber

• Felt and nonwoven materials

• Cork rubber

• Flame-retardant foam

• Conductive foam

• Thermal insulation foam

Adhesive Options

We offer different adhesive systems for metal, plastic, glass, painted surfaces and electronic components.

Available options include:

• Single-sided acrylic adhesive

• Double-sided acrylic adhesive

• Rubber-based adhesive

• Silicone adhesive

• High-temperature adhesive

• Flame-retardant adhesive

• Removable adhesive

• Low-surface-energy adhesive

• High-bonding-strength adhesive

• Reinforced adhesive transfer tape

The adhesive can be applied to one side or both sides of the gasket material.

Available Thickness and Density

Custom adhesive gaskets are available in different thicknesses and densities.

Common thickness options include:

• 0.3 mm

• 0.5 mm

• 0.8 mm

• 1 mm

• 1.5 mm

• 2 mm

• 3 mm

• 5 mm

• 10 mm

Other thicknesses can be customized according to the required sealing gap and compression ratio.

Foam density, hardness and compression performance can also be selected according to the application.

Custom Die-Cutting Capabilities

Our converting capabilities include:

• Rotary die cutting

• Flatbed die cutting

• Laser cutting

• Kiss cutting

• Through cutting

• Precision slitting

• Hole and slot cutting

• Foam and adhesive lamination

• Multi-layer material bonding

• Split release liner design

• Easy-peel pull tabs

• Roll-to-roll converting

Customers can provide drawings in PDF, DXF, DWG, AI or STEP format. We can also develop the gasket shape according to a physical sample.

Available Product Shapes

Custom adhesive gaskets can be manufactured as:

• Circular gaskets

• Sealing rings and washers

• Rectangular gasket frames

• Foam strips

• Adhesive pads

• Flange gaskets

• Speaker gaskets

• Battery sealing pads

• Enclosure sealing frames

• Parts with holes and slots

• Irregular custom components

• Multi-part gasket sets

Supply Formats

Products can be supplied as:

• Individual die-cut pieces

• Multiple parts on one release liner

• Sheet format

• Kiss-cut parts on continuous rolls

• Continuous strips

• Parts with finger-lift tabs

• Split-liner adhesive gaskets

• Customized spacing and roll core size

Roll-form supply is suitable for automatic and semi-automatic assembly lines.

Typical Applications

Die cut adhesive gaskets are widely used for:

• Electronic enclosures

• Battery packs and energy storage systems

• Automotive interior components

• Automotive lighting systems

• Household appliances

• Speakers and audio equipment

• LED lighting products

• Displays and control panels

• Medical equipment

• HVAC systems

• Doors and windows

• Industrial machinery

• Communication equipment

• Sensors and electronic modules

• Packaging and protective components

Sealing and Cushioning Performance

Adhesive gaskets can provide different functions depending on the selected material:

• Dust sealing

• Moisture protection

• Air sealing

• Sound insulation

• Shock absorption

• Vibration reduction

• Gap filling

• Thermal insulation

• Electrical insulation

• EMI shielding with conductive materials

The material should be selected according to compression, temperature, chemical exposure and environmental conditions.

Prototype and Custom Production

Small-quantity samples are available for dimensional, adhesion, compression and assembly testing before mass production.

For quotation, please provide:

• Product drawing or required dimensions

• Gasket material

• Material thickness

• Density or hardness requirement

• Adhesive type

• Working temperature

• Sealing and compression requirements

• Required quantity

• Individual piece, sheet or roll format

● Without foil tape : customize from 1mm to 500mm ● With foil tape : customize from 1mm to 350mm ● 50mm for standard size of most customers choice

From 1m to 200m is available & 50m for normal size choice

Paper Core Size diameter 25mm / 32mm / 38mm / 76mm is possible diameter 32mm is usual paper core	Blank core / logo brand core  kraft paper core  plastic core are available
