Custom Die Cut Kapton Tape

Our custom die cut Kapton tape is manufactured from heat-resistant polyimide film coated with pressure-sensitive silicone or acrylic adhesive. It provides excellent electrical insulation, dimensional stability and clean removal under high-temperature working conditions.

The tape can be die cut into circles, rings, washers, frames, strips, gaskets and complex irregular shapes according to customer drawings or samples. It is suitable for electronics, batteries, motors, transformers, PCB production and industrial high-temperature masking.

Main Features

• Excellent high-temperature resistance

• Reliable electrical insulation

• Thin, flexible and dimensionally stable

• Strong adhesion to metal, plastic, glass and electronic components

• Clean removal with minimal adhesive residue

• Resistant to chemicals, solvents and abrasion

• Suitable for temporary masking and permanent insulation

• Custom shapes and dimensions available

• Cutting tolerance available up to ±0.1 mm, depending on design

• Small-batch samples and mass production supported

Available Material Options

We can provide different polyimide tape constructions according to the customer’s application requirements.

Available options include:

• Silicone adhesive polyimide tape

• Acrylic adhesive polyimide tape

• Single-sided polyimide tape

• Double-sided polyimide tape

• Antistatic polyimide tape

• Flame-retardant polyimide tape

• Reinforced polyimide tape

• Polyimide film without adhesive

• Polyimide tape laminated with foam, PET or other materials

Available Thickness

Common total thickness options include:

• 0.04 mm

• 0.05 mm

• 0.055 mm

• 0.06 mm

• 0.08 mm

• 0.10 mm

• 0.12 mm

• 0.15 mm

Other thicknesses can be customized according to the required insulation and bonding performance.

Temperature Resistance

Depending on the adhesive system and application conditions, our polyimide tape can generally withstand:

• Continuous operating temperatures up to approximately 200–260°C

• Short-term high-temperature processing above 260°C for selected materials

The exact temperature performance should be confirmed according to exposure time, pressure, surface material and application process.

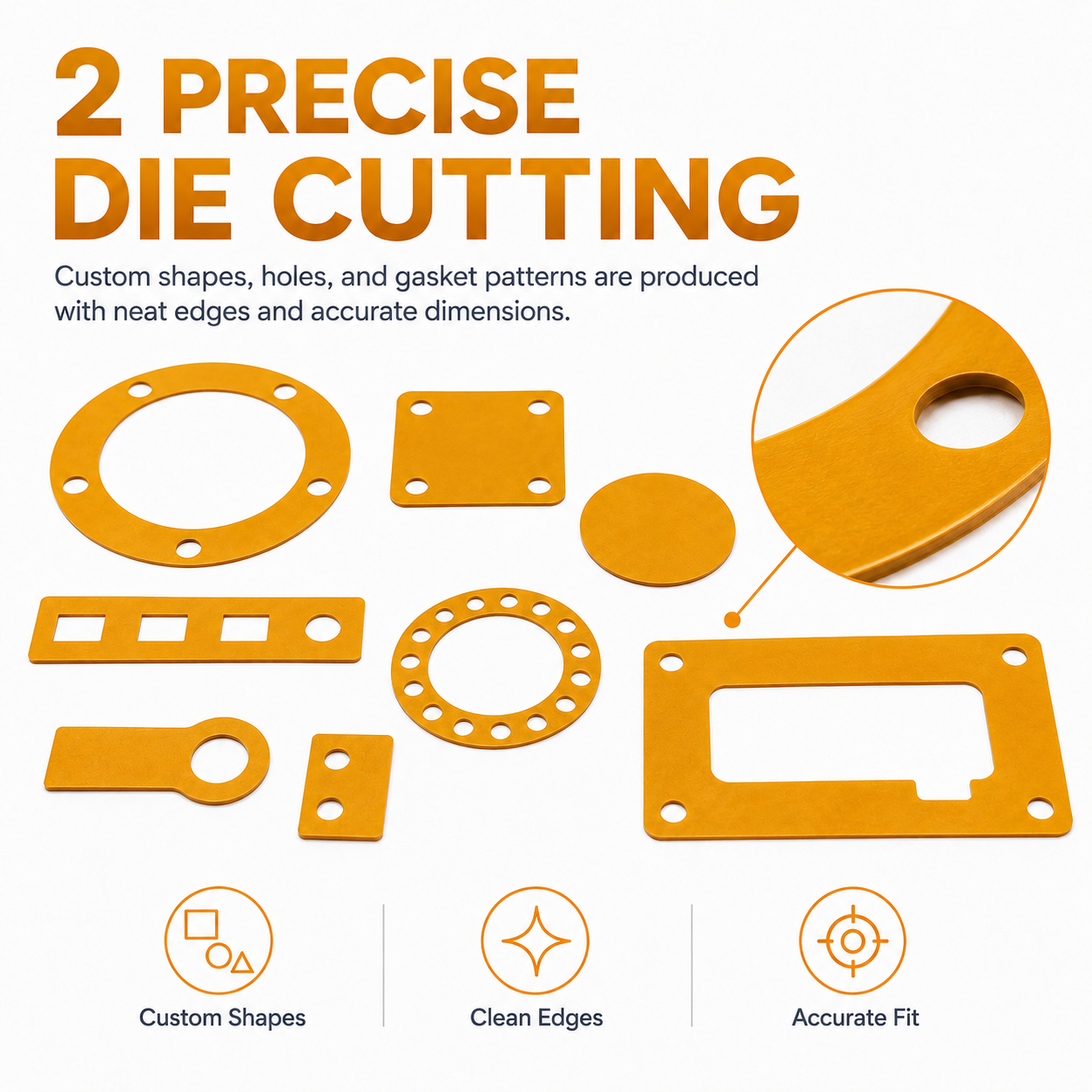

Custom Die-Cutting Capabilities

We provide complete precision converting services, including:

• Rotary die cutting

• Flatbed die cutting

• Laser cutting

• Kiss cutting

• Through cutting

• Precision slitting

• Hole and slot cutting

• Multi-layer lamination

• Easy-peel tab design

• Roll-to-roll converting

• Protective liner application

Customers can provide drawings in PDF, DXF, DWG, AI or STEP format. Production can also be arranged according to physical samples.

Supply Formats

Custom die cut Kapton tape can be supplied as:

• Individual die-cut pieces

• Multiple pieces on one release liner

• Sheets

• Continuous rolls

• Kiss-cut parts on rolls

• Parts with extended release liners

• Parts with easy-peel handles

• Customized spacing and roll core sizes

Typical Applications

Die cut polyimide tape is widely used for:

• PCB soldering and wave solder masking

• Powder coating masking

• Lithium battery insulation

• Battery cell and battery pack assembly

• Transformer and coil insulation

• Motor winding insulation

• Electronic component protection

• Flexible printed circuit assembly

• 3D printing surface protection

• Semiconductor processing

• Automotive electronic components

• Aerospace electrical insulation

• High-temperature industrial masking

• Sensor and LED assembly

Custom Sample Service

Small-batch samples are available for testing before mass production. We can recommend the appropriate film thickness, adhesive type and die-cut structure according to the working temperature, bonding surface and insulation requirements.

For quotation, please provide:

• Product drawing or required dimensions

• Tape thickness

• Adhesive type

• Working temperature

• Bonding surface material

• Required quantity

• Sheet, piece or roll supply format

● Without foil tape : customize from 1mm to 500mm ● With foil tape : customize from 1mm to 350mm ● 50mm for standard size of most customers choice

From 1m to 200m is available & 50m for normal size choice

Paper Core Size diameter 25mm / 32mm / 38mm / 76mm is possible diameter 32mm is usual paper core	Blank core / logo brand core  kraft paper core  plastic core are available
