Custom Die Cut Masking Tape

Our custom die cut masking tape is designed for precise protection and masking during painting, powder coating, spraying, bonding, surface treatment and industrial assembly.

The tape can be converted into circles, rings, rectangles, frames, strips, plugs and complex irregular shapes according to customer drawings or physical samples. Compared with manually cutting standard tape, pre-cut masking parts improve application speed, positioning accuracy and production consistency.

Main Features

• Custom-made according to drawings or samples

• Cutting tolerance available up to ±0.1 mm, depending on material and product structure

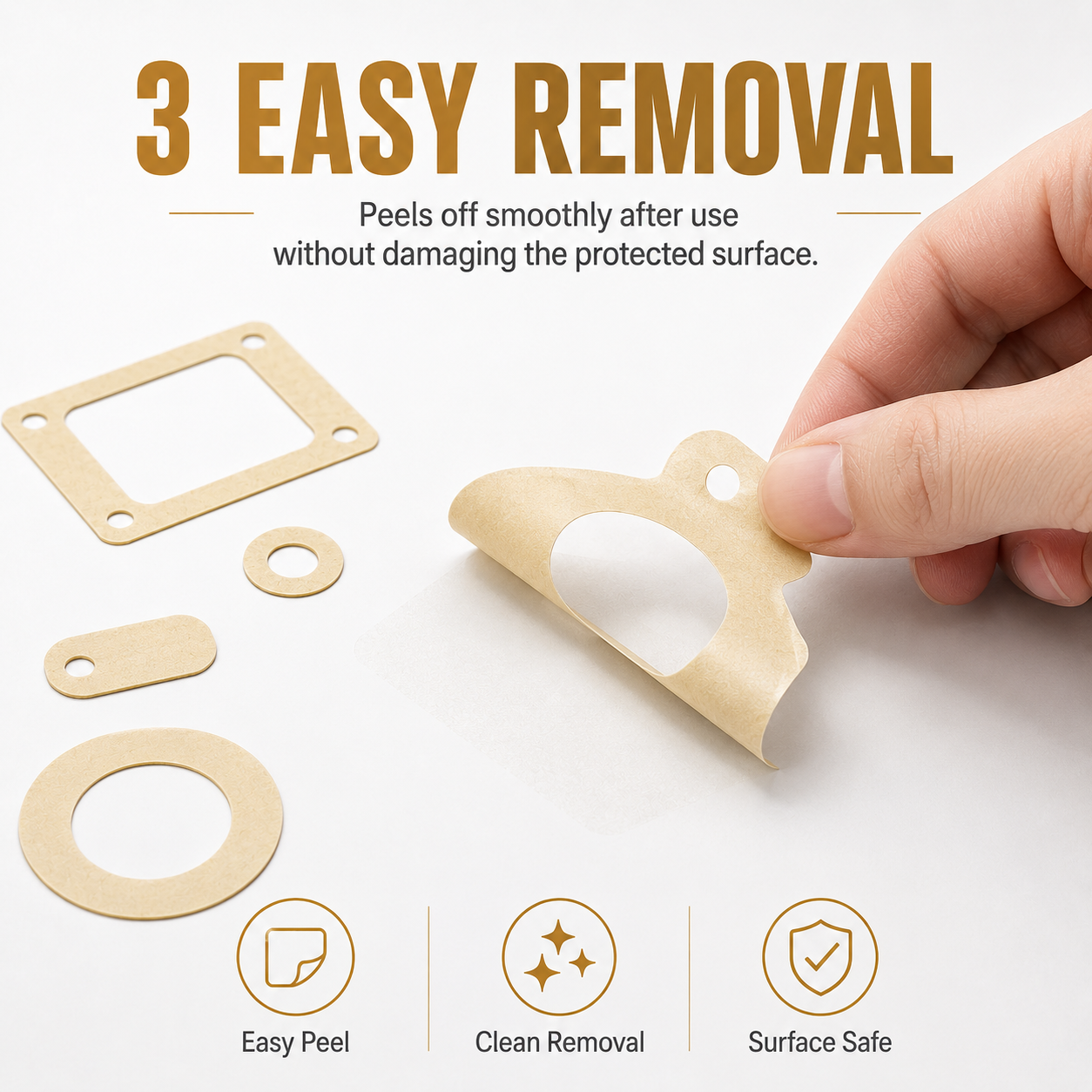

• Easy application and clean removal

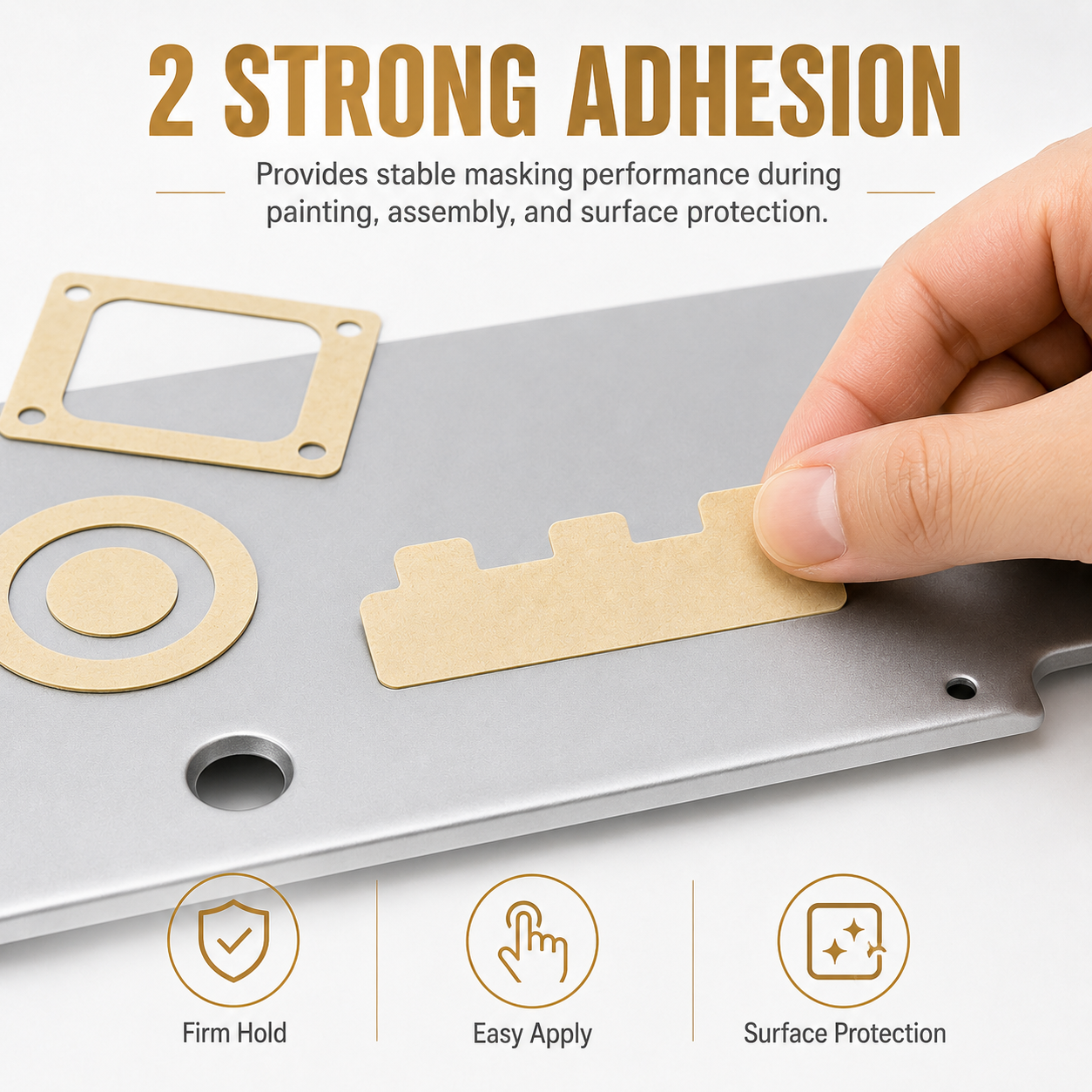

• Good adhesion to metal, plastic, glass and painted surfaces

• Minimal adhesive residue after removal

• Good conformability on curved and irregular surfaces

• Heat-resistant grades available

• Suitable for temporary surface protection

• Small-batch samples and mass production supported

• Supplied as individual pieces, sheets or continuous rolls

Available Masking Tape Materials

Different materials and adhesive systems can be selected according to the working temperature, surface condition and application process.

Available options include:

• Crepe paper masking tape

• Flat paper masking tape

• Washi masking tape

• High-temperature masking tape

• Automotive painting masking tape

• Powder coating masking tape

• UV-resistant masking tape

• Solvent-resistant masking tape

• Acrylic adhesive masking tape

• Rubber adhesive masking tape

• Silicone adhesive high-temperature tape

Tape color, thickness, adhesion level and temperature resistance can be customized according to the application.

Custom Die-Cutting Capabilities

We provide complete tape converting services, including:

• Rotary die cutting

• Flatbed die cutting

• Laser cutting

• Kiss cutting

• Through cutting

• Precision slitting

• Hole and slot cutting

• Multi-layer lamination

• Easy-peel tab design

• Extended release liner

• Roll-to-roll production

Customers can provide drawings in PDF, DXF, DWG, AI or STEP format. We can also develop the shape according to a physical sample.

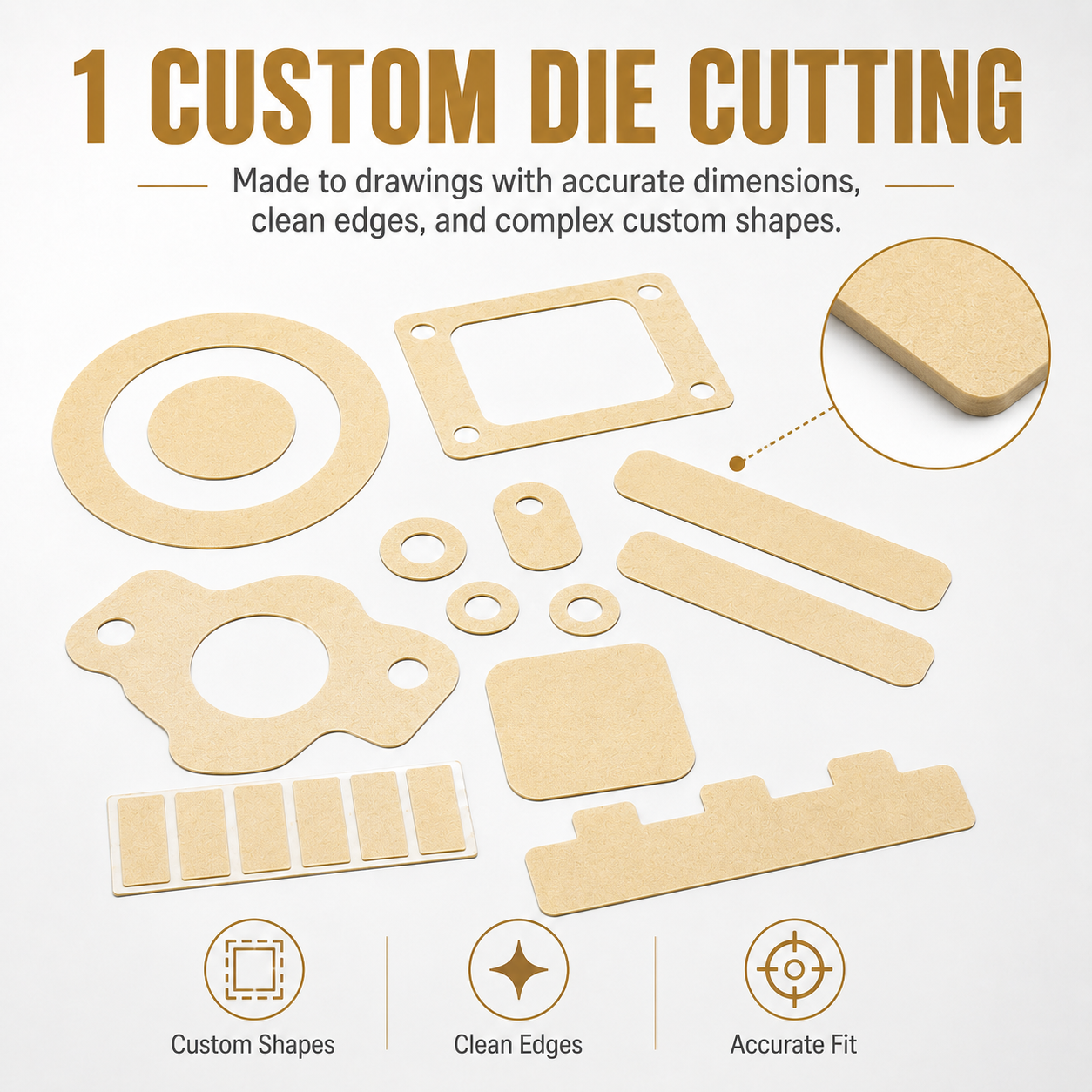

Available Product Shapes

Custom masking tape can be produced in many shapes, including:

• Circular masking discs

• Masking rings and washers

• Rectangular and square pieces

• Frames and window shapes

• Long strips

• Tabs and plugs

• Parts with multiple holes

• Irregular custom components

• Multi-part masking sets

Supply Formats

Products can be supplied as:

• Individual die-cut pieces

• Multiple parts on one release liner

• Sheet format

• Kiss-cut parts on rolls

• Continuous rolls with fixed spacing

• Parts with easy-peel handles

• Customized roll width and core diameter

Roll-form supply is recommended for automatic or semi-automatic production lines.

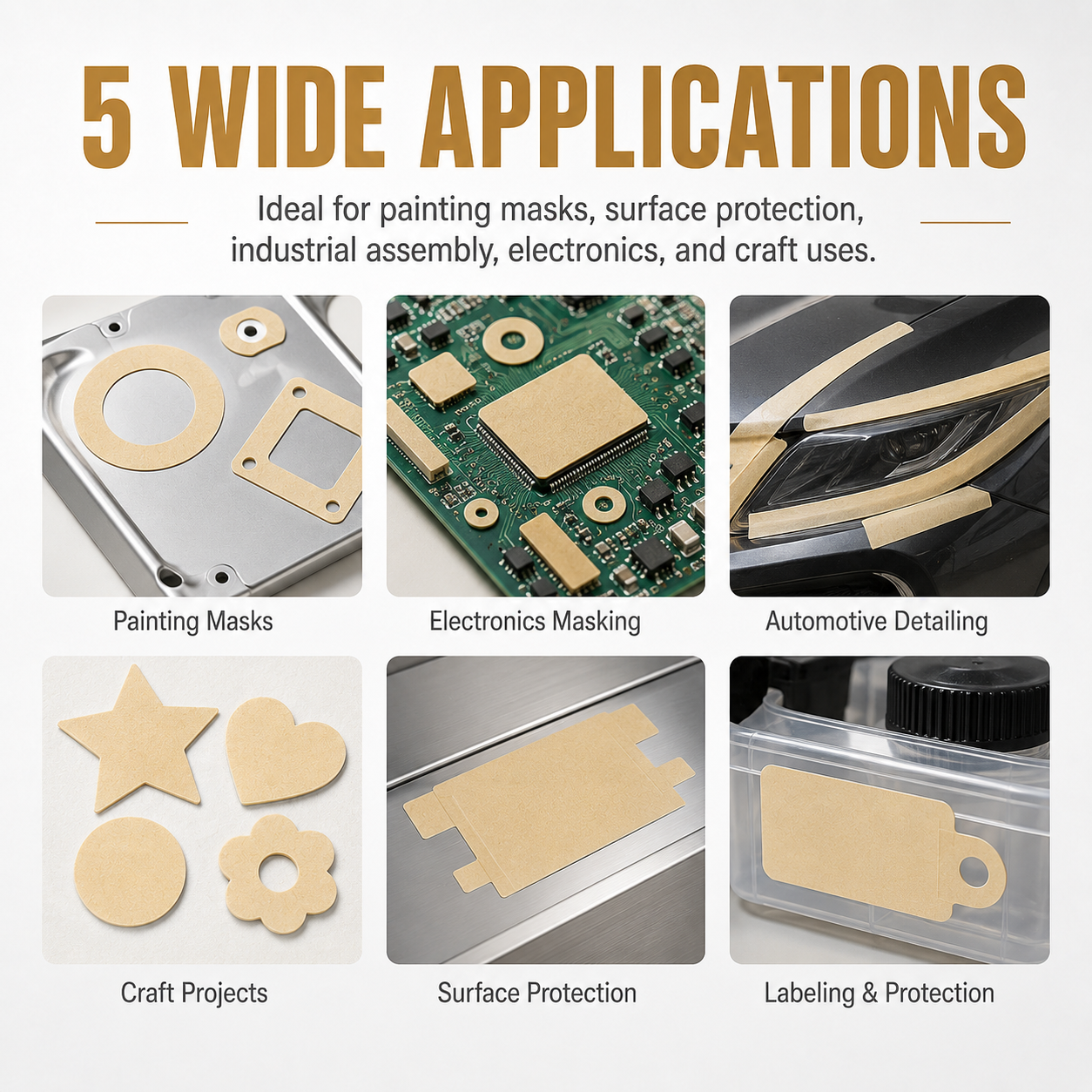

Typical Applications

Custom die cut masking tape is widely used for:

• Automotive painting and refinishing

• Powder coating masking

• Metal surface treatment

• Industrial spray painting

• Electronics manufacturing

• PCB processing

• Appliance production

• Aerospace component masking

• Glass and plastic surface protection

• Furniture painting

• Sign and graphic production

• General industrial assembly

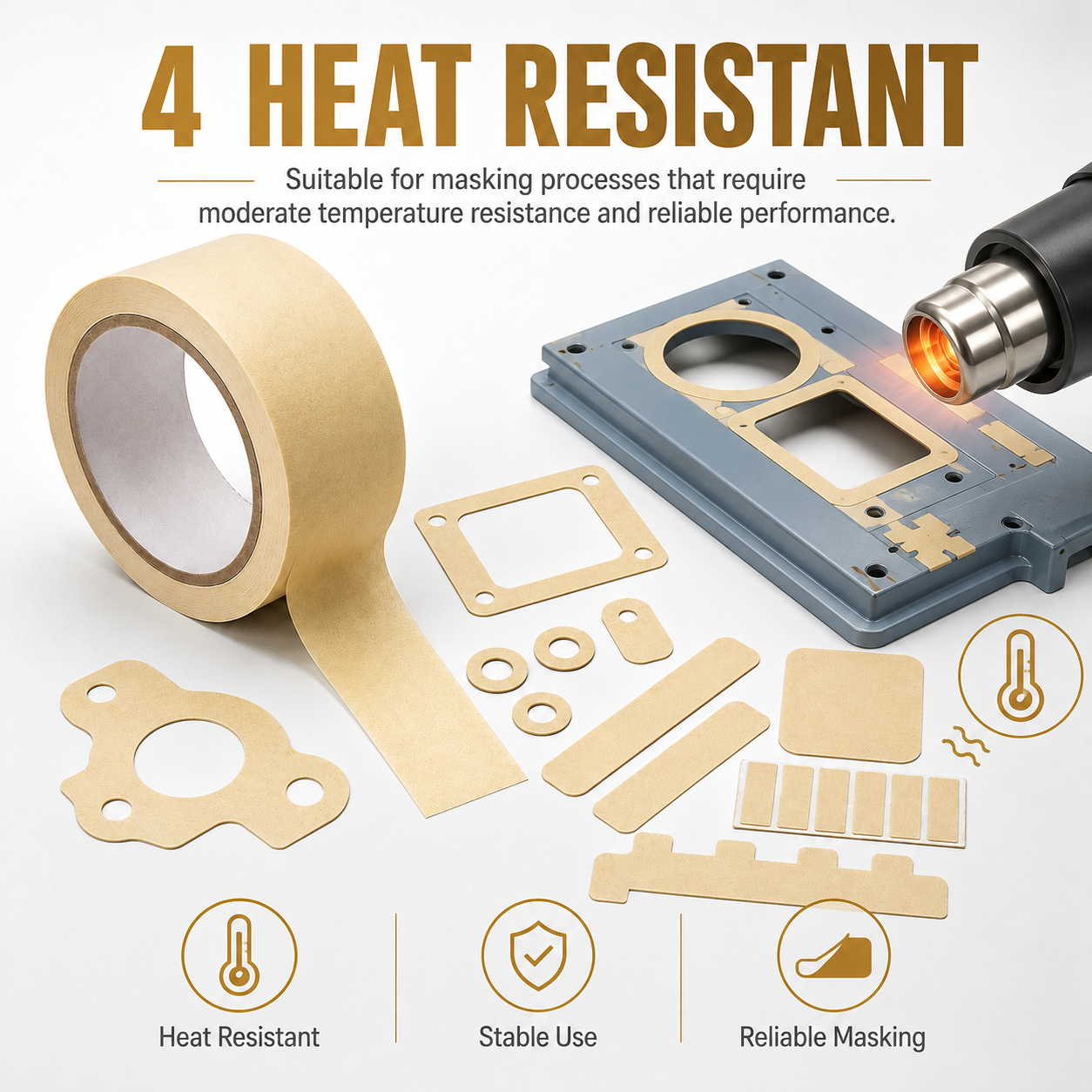

Heat-Resistant Options

Standard masking tape is suitable for general painting and surface protection. High-temperature grades are available for baking, powder coating and industrial thermal processing.

The actual temperature resistance depends on:

• Tape backing material

• Adhesive type

• Exposure time

• Surface condition

• Processing environment

The required operating temperature and heating duration should be confirmed before material selection.

Prototype and Mass Production

We support low-quantity samples for fit, adhesion and removal testing before volume production. Our team can recommend the appropriate tape material and die-cut structure according to the customer’s process.

For quotation, please provide:

• Product drawing or required dimensions

• Required tape material

• Working temperature

• Heating duration

• Bonding surface

• Required quantity

• Individual, sheet or roll supply format

● Without foil tape : customize from 1mm to 500mm ● With foil tape : customize from 1mm to 350mm ● 50mm for standard size of most customers choice

From 1m to 200m is available & 50m for normal size choice

Paper Core Size diameter 25mm / 32mm / 38mm / 76mm is possible diameter 32mm is usual paper core	Blank core / logo brand core  kraft paper core  plastic core are available

6 Steps To Get Your Custom Order

The mold cut of multiple tape technique we can offer as like die cut tape / overlay tape / stamp tape / kiss cut sticker roll etc.

Different package based on your needs & nature of your business development,we would like to offer suggestion to save your cost ,achieve your ideas on package

shrink wrap pack

single box

standard factory packing

washi paper & environmental
